Séance 7 - postier chinois¶
[3]:
import networkx as nx
import numpy as np
# Create a connected graph with 12 nodes
G = nx.erdos_renyi_graph(
12, 0.3
) # Using a random graph for simplicity, adjust probability for connectivity
# Ensure the graph is connected, regenerate if not
while not nx.is_connected(G):
G = nx.erdos_renyi_graph(12, 0.3)
# Get the adjacency matrix
adj_matrix = nx.adjacency_matrix(G)
# Convert to a dense numpy array for easier viewing
adj_matrix_dense = adj_matrix.todense()
print("Adjacency Matrix:")
print(adj_matrix_dense)
Adjacency Matrix:
[[0 1 0 1 0 0 0 0 1 1 1 0]
[1 0 1 0 0 0 1 0 1 0 0 1]
[0 1 0 0 1 0 0 1 0 1 1 0]
[1 0 0 0 0 0 0 0 1 0 0 0]
[0 0 1 0 0 0 0 0 0 0 0 0]
[0 0 0 0 0 0 0 1 1 1 0 0]
[0 1 0 0 0 0 0 0 0 1 0 0]
[0 0 1 0 0 1 0 0 1 1 1 1]
[1 1 0 1 0 1 0 1 0 0 0 0]
[1 0 1 0 0 1 1 1 0 0 0 0]
[1 0 1 0 0 0 0 1 0 0 0 0]
[0 1 0 0 0 0 0 1 0 0 0 0]]
[4]:
import matplotlib.pyplot as plt

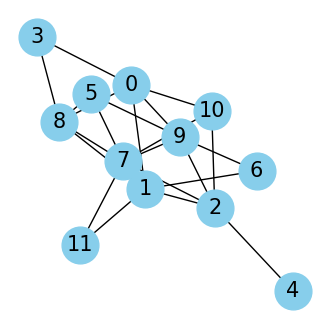

# Draw the graph
pos = nx.spring_layout(G) # positions for all nodes - seed for reproducibility
fig, ax = plt.subplots(figsize=(4, 4))
nx.draw(
G,
pos,
with_labels=True,
node_color="skyblue",
node_size=700,
edge_color="k",
linewidths=1,
font_size=15,
ax=ax,
)
# Display the plot
plt.show()

[5]:
def degre_noeuds(adj_matrix_dense):
return adj_matrix_dense.sum(axis=1)
degre_noeuds(adj_matrix_dense)
[5]:
array([5, 5, 5, 2, 1, 3, 2, 6, 5, 5, 3, 2])
[6]:
def tous_noeuds_degre_impair_sauf_deux(adj_matrix_dense):
deg = degre_noeuds(adj_matrix_dense)
impairs = (deg % 2).sum()
return bool(impairs <= 2)
tous_noeuds_degre_impair_sauf_deux(adj_matrix_dense)
[6]:
False
[7]:
def plus_court_chemin(adj_matrix, debut, fin):
distance = np.array([np.inf for i in range(len(adj_matrix))])
predecessors = np.array([-1 for i in range(len(adj_matrix))])
distance[debut] = 0
for t in range(len(adj_matrix)):
for i in range(len(adj_matrix)):
for j in range(len(adj_matrix)):
d = distance[i] + adj_matrix[i, j]
if adj_matrix[i, j] != 0 and distance[j] > d:
distance[j] = d
predecessors[j] = i
chemin = []
while fin != -1:
chemin.append(int(fin))
fin = predecessors[fin]
return distance[fin], chemin[::-1]
plus_court_chemin(adj_matrix_dense, 0, 1)
[7]:
(np.float64(2.0), [0, 1])
[8]:
def appariement_approche(adj_matrix):
degre = degre_noeuds(adj_matrix)
impair = np.arange(degre.shape[0])[degre % 2 == 1]
paires = []
for i in impair:
for j in impair:
if i <= j:
continue
paires.append((i, j, plus_court_chemin(adj_matrix, i, j)[0]))
paires.sort()
appariement = []
selectionne = set()
for i, j, d in paires:
if i not in selectionne and j not in selectionne:
selectionne.add(i)
selectionne.add(j)
appariement.append((i, j))
return appariement
appariement = appariement_approche(adj_matrix_dense)
appariement
[8]:
[(np.int64(1), np.int64(0)),
(np.int64(4), np.int64(2)),
(np.int64(8), np.int64(5)),
(np.int64(10), np.int64(9))]
[9]:
def ajout_arc(adj_matrix):
copie = adj_matrix.copy()
appariement = appariement_approche(adj_matrix_dense)
for i, j in appariement:
chemin = plus_court_chemin(adj_matrix, i, j)[1]
for k in range(len(chemin) - 1):
copie[chemin[k], chemin[k + 1]] += 1
copie[chemin[k + 1], chemin[k]] += 1
return copie
matrice_paire = ajout_arc(adj_matrix_dense)
matrice_paire
[9]:
array([[0, 2, 0, 1, 0, 0, 0, 0, 1, 2, 2, 0],
[2, 0, 1, 0, 0, 0, 1, 0, 1, 0, 0, 1],
[0, 1, 0, 0, 2, 0, 0, 1, 0, 1, 1, 0],
[1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0],
[0, 0, 2, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 1, 2, 1, 0, 0],
[0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0],
[0, 0, 1, 0, 0, 1, 0, 0, 1, 1, 1, 1],
[1, 1, 0, 1, 0, 2, 0, 1, 0, 0, 0, 0],
[2, 0, 1, 0, 0, 1, 1, 1, 0, 0, 0, 0],
[2, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0],
[0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0]])
[10]:
degre_noeuds(matrice_paire)
[10]:
array([8, 6, 6, 2, 2, 4, 2, 6, 6, 6, 4, 2])
[11]:
def chemin_passant_par_tous_les_arcs(matrice):
"""
Retourne un chemin passant par tous les arcs d'un graphe non orienté,
représenté par une matrice d'adjacence.
Retourne None si le graphe n'est pas eulérien.
"""
# Conversion matrice -> liste d'adjacence
n = len(matrice)
graphe = {}
for i in range(n):
for j in range(i + 1, n):
if matrice[i][j] > 0:
if i not in graphe:
graphe[i] = []
if j not in graphe:
graphe[j] = []
graphe[i].append(j)
graphe[j].append(i)
# Vérifie si le graphe est eulérien
def est_eulerien(g):
degres = [0] * n
for u in g:
degres[u] = len(g[u])
degres_impairs = [u for u in range(n) if degres[u] % 2 != 0]
if len(degres_impairs) == 0 or len(degres_impairs) == 2:
return True, degres_impairs
return False, degres_impairs
# Algorithme de Hierholzer
def hierholzer(g):
stack = []
chemin = []
sommet_courant = 0
stack.append(sommet_courant)
while stack:
u = stack[-1]
if g[u]:
v = g[u].pop()
g[v].remove(u) # Supprime l'arc dans les deux sens
stack.append(v)
else:
chemin.append(stack.pop())
return chemin[::-1]
# Copie du graphe pour ne pas le modifier
g = {}
for u in graphe:
g[u] = graphe[u].copy()
chemin = hierholzer(g)
return chemin
chemin_passant_par_tous_les_arcs(matrice_paire)
[11]:
[0, 10, 7, 11, 1, 8, 7, 9, 6, 1, 2, 9, 5, 7, 2, 4, 8, 3, 0, 1, 8, 9, 10]
[ ]:
