Export a LLM to ONNX with InputObserver

This example shows how to export a HuggingFace transformers LLM to ONNX using InputObserver.

The key challenge when exporting a LLM is that the HuggingFace examples typically call model.generate, but we only need to export the forward method. InputObserver intercepts the forward calls during generation to record the actual inputs and outputs, which are then used to infer:

• the dynamic shapes (which tensor dimensions vary across calls), and

• a representative set of export arguments (with empty tensors for optional inputs that were absent in some calls).

We use arnir0/Tiny-LLM — a very small causal language model — so the example runs without a GPU.

Command-line options

Run with pre-trained weights (default) or a randomly initialised model:

python plot_llm_to_onnx.py                                  # pre-trained weights (default)
python plot_llm_to_onnx.py --no-trained                     # random weights — fast
python plot_llm_to_onnx.py --num-hidden-layers 2            # use only 2 transformer layers
python plot_llm_to_onnx.py --model Qwen/Qwen2-0.5B-Instruct # use a different model

When --trained is given (the default) the full checkpoint is downloaded (~hundreds of MB) and the exported ONNX model produces meaningful text. Pass --no-trained to build the model from the config with random weights via transformers.AutoModelForCausalLM.from_config() — only the tokenizer and the architecture config are downloaded (~few KB), which is useful for quick testing and CI.

--num-hidden-layers overrides config.num_hidden_layers before the model is instantiated, which shrinks the number of transformer decoder blocks. This is useful for reducing memory use and export time during development.

Imports

import argparse
import sys

import pandas
import torch
from transformers import AutoConfig, AutoModelForCausalLM, AutoTokenizer

from yobx import doc
from yobx.helpers import string_type
from yobx.helpers.rt_helper import onnx_generate
from yobx.torch import (
    InputObserver,
    apply_patches_for_model,
    register_flattening_functions,
    to_onnx,
)

Command-line arguments

--trained / --no-trained controls whether the full pre-trained checkpoint is loaded (default: --trained). Pass --no-trained to build a randomly initialised model from the architecture config only (faster, no large download, suitable for CI).

--num-hidden-layers overrides the number of transformer decoder blocks in the config before the model is built. Use a small value (e.g. 2) to speed up export and reduce memory during development.

--model selects the HuggingFace model ID to use (default: arnir0/Tiny-LLM). Any transformers.AutoModelForCausalLM-compatible model can be passed here.

_DEFAULT_MODEL = "arnir0/Tiny-LLM"

parser = argparse.ArgumentParser(description="Export a HuggingFace LLM to ONNX.")
parser.add_argument(
    "--model",
    default=_DEFAULT_MODEL,
    metavar="MODEL_ID",
    help=(
        f"HuggingFace model ID to export (default: {_DEFAULT_MODEL!r}). "
        "Any AutoModelForCausalLM-compatible model can be used."
    ),
)
parser.add_argument(
    "--trained",
    action=argparse.BooleanOptionalAction,
    default=True,
    help=(
        "Load the full pre-trained weights from HuggingFace Hub (default). "
        "Pass --no-trained to build a randomly initialised model from the config "
        "(no weight download, suitable for CI)."
    ),
)
parser.add_argument(
    "--num-hidden-layers",
    type=int,
    default=None,
    metavar="LAYERS",
    help=(
        "Override config.num_hidden_layers to N before building the model. "
        "Reduces the number of transformer decoder blocks, which lowers memory "
        "use and speeds up export. Defaults to the value in the model config."
    ),
)
# parse_known_args avoids failures when sphinx-gallery passes extra arguments.
args, _ = parser.parse_known_args(sys.argv[1:])

Load model and tokenizer

The tokenizer is always fetched from HuggingFace (small download). The architecture config is fetched next; if --num-hidden-layers was given the corresponding config attribute is overridden before the model is built. By default the model is loaded with pre-trained weights (--trained). Pass --no-trained to use random weights instead (much faster, no large download).

MODEL_NAME = args.model
tokenizer = AutoTokenizer.from_pretrained(MODEL_NAME)
config = AutoConfig.from_pretrained(MODEL_NAME)

if args.num_hidden_layers is not None:
    print(
        f"Overriding num_hidden_layers: "
        f"{config.num_hidden_layers} -> {args.num_hidden_layers}"
    )
    config.num_hidden_layers = args.num_hidden_layers

if args.trained:
    print(f"Loading pre-trained weights for {MODEL_NAME!r} ...")
    # ignore_mismatched_sizes=True is required when num_hidden_layers has been
    # reduced: the checkpoint contains weights for all original layers, and
    # without this flag from_pretrained would raise an error on the missing keys.
    model = AutoModelForCausalLM.from_pretrained(
        MODEL_NAME, config=config, ignore_mismatched_sizes=True
    )
else:
    print(f"Building randomly initialised model from config for {MODEL_NAME!r} ...")
    model = AutoModelForCausalLM.from_config(config)

print(
    f"  trained={args.trained}  num_hidden_layers={config.num_hidden_layers}  "
    f"#params={sum(p.numel() for p in model.parameters()):,}"
)

Loading pre-trained weights for 'arnir0/Tiny-LLM' ...

Loading weights:   0%|          | 0/12 [00:00<?, ?it/s]
Loading weights: 100%|██████████| 12/12 [00:00<00:00, 470.08it/s]
  trained=True  num_hidden_layers=1  #params=12,988,992

Device selection

Move the model to GPU if CUDA is available so that the observation, export, and inference steps all run on the same device.

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"  device={device}")
model = model.to(device)

device=cuda

Observe forward calls during generation

InputObserver acts as a context manager that replaces the model’s forward method. Every time forward is called (internally by model.generate), the inputs and outputs are recorded.

register_flattening_functions must wrap the observation because the KV-cache (transformers.cache_utils.DynamicCache) is a custom Python class that needs to be registered as a pytree node before torch.utils._pytree can flatten it.

prompt = "Continue: it rains, what should I do?"
inputs = tokenizer(prompt, return_tensors="pt")
inputs = {k: v.to(device) for k, v in inputs.items()}

observer = InputObserver()

with (
    register_flattening_functions(patch_transformers=True),
    apply_patches_for_model(patch_transformers=True, model=model),
    observer(model),
):
    model.generate(
        input_ids=inputs["input_ids"],
        attention_mask=inputs["attention_mask"],
        do_sample=False,
        max_new_tokens=10,
    )

print(f"number of stored forward calls: {observer.num_obs()}")

number of stored forward calls: 3

Infer dynamic shapes and representative arguments

After generation the observer has seen several forward calls, each with different sequence lengths and KV-cache sizes. We can now ask it to infer:

• dynamic_shapes — a nested structure of torch.export.Dim values describing which dimensions must be treated as dynamic during export.

• kwargs — one representative set of inputs that can be passed directly to torch.export.export() or yobx.torch.to_onnx().

with register_flattening_functions(patch_transformers=True):
    dynamic_shapes = observer.infer_dynamic_shapes(set_batch_dimension_for=True)
    kwargs = observer.infer_arguments()

print("dynamic_shapes:", dynamic_shapes)
print("kwargs:", string_type(kwargs, with_shape=True))

dynamic_shapes: {'input_ids': {0: DimHint(DYNAMIC), 1: DimHint(DYNAMIC)}, 'attention_mask': {0: DimHint(DYNAMIC), 1: DimHint(DYNAMIC)}, 'position_ids': {0: DimHint(DYNAMIC), 1: DimHint(DYNAMIC)}, 'past_key_values': [{0: DimHint(DYNAMIC), 2: DimHint(DYNAMIC)}, {0: DimHint(DYNAMIC), 2: DimHint(DYNAMIC)}], 'logits_to_keep': None}
kwargs: dict(input_ids:T7s1x13,attention_mask:T7s1x13,position_ids:T7s1x13,past_key_values:DynamicCache(key_cache=#1[T1s1x1x0x96], value_cache=#1[T1s1x1x0x96]),logits_to_keep:int)

Export to ONNX

We now export the model. Both register_flattening_functions and apply_patches_for_model must be active during export so that the exporter can correctly handle the KV-cache type and any PyTorch ops that need patching.

filename = "plot_llm_to_onnx.onnx"

with (
    register_flattening_functions(patch_transformers=True),
    apply_patches_for_model(patch_torch=True, patch_transformers=True, model=model),
):
    to_onnx(
        model,
        (),
        kwargs=observer.infer_arguments(),
        dynamic_shapes=observer.infer_dynamic_shapes(set_batch_dimension_for=True),
        filename=filename,
    )

Verify: check discrepancies

check_discrepancies runs every recorded set of inputs through both the original PyTorch model and the exported ONNX model, then reports the maximum absolute difference for each output. Values close to zero confirm that the export is correct.

data = observer.check_discrepancies(filename, progress_bar=True)
print(pandas.DataFrame(data))

  0%|          | 0/3 [00:00<?, ?it/s]
 33%|███▎      | 1/3 [00:00<00:01,  1.13it/s]
100%|██████████| 3/3 [00:00<00:00,  3.05it/s]
        abs       rel        sum        n  dnan  dev  >0.1  >0.01  SUCCESS  index  duration_torch  ort_duration  n_inputs  n_none  n_empty                                             inputs                               outputs_torch                                 outputs_ort
0  0.006306  0.328028  26.505746  34496.0     0    0     0      0    False      0        0.178980      0.700125         5       2        2  dict(input_ids:T7s1x13,attention_mask:T7s1x13,...  #3[T1s1x1x32000,T1s1x1x13x96,T1s1x1x13x96]  #3[T1s1x1x32000,T1s1x1x13x96,T1s1x1x13x96]
1  0.000009  0.002013   0.062643  34688.0     0    0     0      0     True      1        0.041286      0.028306         5       0        0  dict(input_ids:T7s1x1,attention_mask:T7s1x14,p...  #3[T1s1x1x32000,T1s1x1x14x96,T1s1x1x14x96]  #3[T1s1x1x32000,T1s1x1x14x96,T1s1x1x14x96]
2  0.000012  0.002171   0.065408  34880.0     0    0     0      0     True      2        0.008502      0.021704         5       0        0  dict(input_ids:T7s1x1,attention_mask:T7s1x15,p...  #3[T1s1x1x32000,T1s1x1x15x96,T1s1x1x15x96]  #3[T1s1x1x32000,T1s1x1x15x96,T1s1x1x15x96]

Run the ONNX model in a greedy auto-regressive loop

onnx_generate mimics model.generate for the exported ONNX model: it feeds the present key/value tensors back as past key/values on every decoding step. (With random weights the output tokens will be meaningless, but the pipeline itself is exercised end-to-end.)

onnx_tokens = onnx_generate(
    filename,
    input_ids=inputs["input_ids"],
    attention_mask=inputs["attention_mask"],
    eos_token_id=model.config.eos_token_id,
    max_new_tokens=50,
)
onnx_generated_text = tokenizer.decode(onnx_tokens[0], skip_special_tokens=True)
print("-----------------")
print(onnx_generated_text)
print("-----------------")

-----------------
Continue: it rains, what should I do?
I have a lot of people who are in the world. I have a lot of people who are in the world, and I have a lot of people who are in the world. I have a lot of people who are in the world,
-----------------

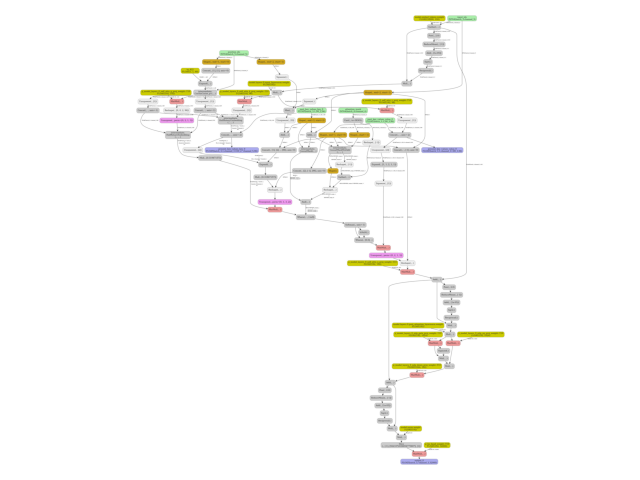

Visualise the ONNX graph

Render the exported ONNX model as a DOT graph.

doc.save_fig(doc.plot_dot(filename), f"{filename}.png", dpi=400)
