Converting a TensorFlow/Keras model to ONNX

yobx.tensorflow.to_onnx() converts a TensorFlow/Keras model into an onnx.ModelProto that can be executed with any ONNX-compatible runtime.

The converter works by tracing the Keras model with tf.function / get_concrete_function to obtain the underlying TensorFlow computation graph. Each TF operation in that graph is then mapped to an equivalent ONNX node by a registered converter.

Supported layers and activations (see yobx.tensorflow for the full registry):

• tf.keras.layers.Dense — converted to MatMul (+ Add when the bias is non-zero after optimisation)

• Activations: relu, sigmoid, tanh, softmax, relu6

• tf.keras.Sequential — chains the above step-by-step

The workflow is:

1. Build (and optionally train) a Keras model.

2. Call yobx.tensorflow.to_onnx() with a representative dummy input (a NumPy array) so it can infer input dtype and shape.

3. Run the ONNX model with any ONNX runtime — this example uses onnxruntime.

4. Verify that the ONNX outputs match Keras’ predictions.

import tensorflow as tf
import numpy as np
import onnxruntime
from yobx.doc import plot_dot
from yobx.tensorflow import to_onnx

Remove this line to run on GPU.

try:
    tf.config.set_visible_devices([], "GPU")
except RuntimeError:
    # may fail if tensorflow has already been running before this script
    pass

1. Build a simple Dense layer

We start with the simplest possible model: a single Dense layer with no activation function (linear/identity), so the conversion reduces to MatMul + Add.

rng = np.random.default_rng(0)
X = rng.standard_normal((5, 4)).astype(np.float32)

model_linear = tf.keras.Sequential([tf.keras.layers.Dense(3, input_shape=(4,))])
onx_linear = to_onnx(model_linear, (X,))

print("Opset            :", onx_linear.opset_import[0].version)
print("Number of nodes  :", len(onx_linear.graph.node))
print("Node op-types    :", [n.op_type for n in onx_linear.graph.node])
print(
    "Graph inputs     :",
    [(inp.name, inp.type.tensor_type.elem_type) for inp in onx_linear.graph.input],
)
print("Graph outputs    :", [out.name for out in onx_linear.graph.output])

~/vv/this312/lib/python3.12/site-packages/keras/src/layers/core/dense.py:106: UserWarning: Do not pass an `input_shape`/`input_dim` argument to a layer. When using Sequential models, prefer using an `Input(shape)` object as the first layer in the model instead.
  super().__init__(activity_regularizer=activity_regularizer, **kwargs)
Opset            : 21
Number of nodes  : 1
Node op-types    : ['MatMul']
Graph inputs     : [('X:0', 1)]
Graph outputs    : ['Identity:0']

Run and compare

The ONNX input name follows TensorFlow’s tensor-naming convention: "{name}:0" where name is the name passed to to_onnx() (defaults to "X").

ref = onnxruntime.InferenceSession(
    onx_linear.SerializeToString(), providers=["CPUExecutionProvider"]
)
(result_linear,) = ref.run(None, {"X:0": X})

expected_linear = model_linear(X).numpy()
print("\nKeras  output (first row):", expected_linear[0])
print("ONNX   output (first row):", result_linear[0])
assert np.allclose(expected_linear, result_linear, atol=1e-5), "Mismatch!"
print("Outputs match ✓")

Keras  output (first row): [-0.52251536  0.46021557 -0.23878135]
ONNX   output (first row): [-0.52251536  0.4602156  -0.23878136]
Outputs match ✓

2. Multi-layer MLP with activations

Next we build a deeper Sequential model that exercises the Relu, MatMul and Add ONNX converters together.

X_train = rng.standard_normal((80, 8)).astype(np.float32)

mlp = tf.keras.Sequential(
    [
        tf.keras.layers.Dense(16, activation="relu", input_shape=(8,)),
        tf.keras.layers.Dense(8, activation="relu"),
        tf.keras.layers.Dense(4),
    ]
)
_ = mlp(X_train)

onx_mlp = to_onnx(mlp, (X_train[:1],))

op_types = [n.op_type for n in onx_mlp.graph.node]
print("\nOp-types in the MLP graph:", op_types)
assert "MatMul" in op_types
assert "Relu" in op_types

Op-types in the MLP graph: ['MatMul', 'Relu', 'MatMul', 'Relu', 'MatMul']

Verify predictions on a held-out batch.

X_test = rng.standard_normal((20, 8)).astype(np.float32)

ref_mlp = onnxruntime.InferenceSession(
    onx_mlp.SerializeToString(), providers=["CPUExecutionProvider"]
)
(result_mlp,) = ref_mlp.run(None, {"X:0": X_test})

expected_mlp = mlp(X_test).numpy()
np.testing.assert_allclose(expected_mlp, result_mlp, atol=1e-2)
print("MLP predictions match ✓")

MLP predictions match ✓

3. Dynamic batch dimension

By default to_onnx() marks the first axis of every input as a dynamic (symbolic) dimension. You can also pass dynamic_shapes explicitly to name the dynamic axis, which is useful when deploying the model with variable-length batches.

onx_dyn = to_onnx(mlp, (X_train[:1],), dynamic_shapes=({0: "batch"},))

input_shape = onx_dyn.graph.input[0].type.tensor_type.shape
batch_dim = input_shape.dim[0]
print("\nBatch dimension param  :", batch_dim.dim_param)
print("Batch dimension value  :", batch_dim.dim_value)
assert batch_dim.dim_param, "Expected a named dynamic dimension"

# The converted model still produces correct results for any batch size.
ref_dyn = onnxruntime.InferenceSession(
    onx_dyn.SerializeToString(), providers=["CPUExecutionProvider"]
)
for n in (1, 7, 20):
    X_batch = rng.standard_normal((n, 8)).astype(np.float32)
    (out,) = ref_dyn.run(None, {"X:0": X_batch})
    expected = mlp(X_batch).numpy()
    np.testing.assert_allclose(expected, out, atol=1e-2)
    print("Dynamic-batch model verified for batch sizes 1, 7, 20 ✓")

Batch dimension param  : dim
Batch dimension value  : 0
Dynamic-batch model verified for batch sizes 1, 7, 20 ✓
Dynamic-batch model verified for batch sizes 1, 7, 20 ✓
Dynamic-batch model verified for batch sizes 1, 7, 20 ✓

4. Custom op converter

The extra_converters argument allows you to override or extend the built-in op converters. Here we replace the Relu converter with a custom one that clips the output at 6 (i.e. Relu6) instead of the standard unbounded rectifier.

def custom_relu_converter(g, sts, outputs, op):
    """Custom converter: replace Relu with Clip(0, 6)."""
    return g.op.Clip(
        op.inputs[0].name,
        np.array(0.0, dtype=np.float32),
        np.array(6.0, dtype=np.float32),
        outputs=outputs,
        name="custom_relu6",
    )


onx_custom = to_onnx(mlp, (X_train[:1],), extra_converters={"Relu": custom_relu_converter})

custom_op_types = [n.op_type for n in onx_custom.graph.node]
print("\nOp-types with custom converter:", custom_op_types)
assert "Clip" in custom_op_types, "Expected Clip node from custom converter"
assert "Relu" not in custom_op_types, "Relu should have been replaced"
print("Custom converter verified ✓")

Op-types with custom converter: ['MatMul', 'Clip', 'MatMul', 'Clip', 'MatMul']
Custom converter verified ✓

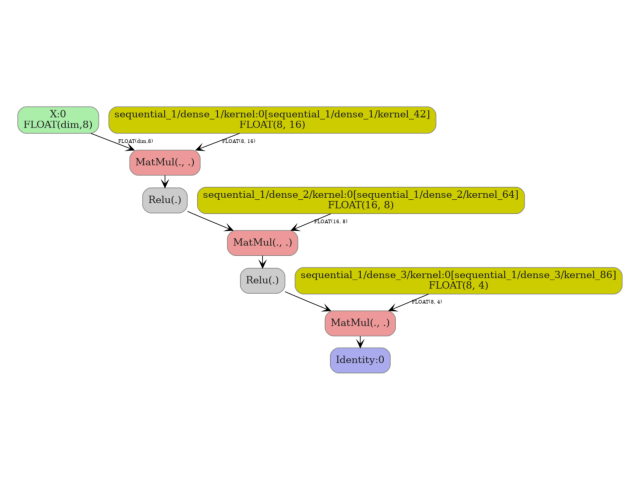

5. Visualize the ONNX graph

plot_dot(onx_mlp)
