Three Consecutive Joins to ONNX (pandas and polars-style)#

This example shows how to convert a pipeline that performs three consecutive inner joins into a self-contained ONNX model using dataframe_to_onnx().

Two flavours are demonstrated:

  1. pandas — pandas DataFrames are passed directly as input_dtypes so column names and dtypes are extracted automatically.

  2. polars / TracedDataFrame — explicit dtype dicts are supplied; the transform callable uses the TracedDataFrame API, which mirrors polars’ polars.LazyFrame.

Scenario#

We model a simplified order-processing pipeline with four tables:

  • orders — order_id, customer_id, product_id, warehouse_id, qty

  • customers — cid, discount

  • products — pid, unit_price

  • warehouses — wid, shipping_cost

The three consecutive joins are:

  1. orders ⋈ customers on orders.customer_id = customers.cid

  2. result ⋈ products on result.product_id = products.pid

  3. result ⋈ warehouses on result.warehouse_id = warehouses.wid

After the joins we compute the final order cost:

total = qty * unit_price * (1 - discount) + shipping_cost

Equivalent polars code#

import polars as pl

orders_lf = pl.LazyFrame({
    "order_id": [1, 2, 3, 4],
    "customer_id": [10, 20, 10, 30],
    "product_id": [100, 200, 300, 100],
    "warehouse_id": [1000, 2000, 1000, 2000],
    "qty": [2.0, 1.0, 3.0, 1.0],
})
customers_lf = pl.LazyFrame({"cid": [10, 20, 30], "discount": [0.1, 0.2, 0.0]})
products_lf = pl.LazyFrame({"pid": [100, 200, 300], "unit_price": [50.0, 80.0, 60.0]})
warehouses_lf = pl.LazyFrame({"wid": [1000, 2000], "shipping_cost": [5.0, 8.0]})

j1 = orders_lf.join(customers_lf, left_on="customer_id", right_on="cid")
j2 = j1.join(products_lf, left_on="product_id", right_on="pid")
j3 = j2.join(warehouses_lf, left_on="warehouse_id", right_on="wid")
result_lf = j3.select(
    [
        (
            pl.col("qty") * pl.col("unit_price") * (1 - pl.col("discount"))
            + pl.col("shipping_cost")
        ).alias("total")
    ]
)
print(result_lf.collect())

The dataframe_to_onnx() converter below produces an ONNX model that is equivalent to this polars pipeline.

import numpy as np
import onnxruntime
from yobx.helpers.onnx_helper import pretty_onnx
from yobx.reference import ExtendedReferenceEvaluator
from yobx.sql import dataframe_to_onnx

Sample data#

Each column is a 1-D numpy array; the four tables are passed as separate arguments to the transform function.

order_id = np.array([1, 2, 3, 4], dtype=np.int64)
customer_id = np.array([10, 20, 10, 30], dtype=np.int64)
product_id = np.array([100, 200, 300, 100], dtype=np.int64)
warehouse_id = np.array([1000, 2000, 1000, 2000], dtype=np.int64)
qty = np.array([2.0, 1.0, 3.0, 1.0], dtype=np.float32)

cid = np.array([10, 20, 30], dtype=np.int64)
discount = np.array([0.1, 0.2, 0.0], dtype=np.float32)

pid = np.array([100, 200, 300], dtype=np.int64)
unit_price = np.array([50.0, 80.0, 60.0], dtype=np.float32)

wid = np.array([1000, 2000], dtype=np.int64)
shipping_cost = np.array([5.0, 8.0], dtype=np.float32)

# reusable feeds dict (column name → numpy array)
feeds = {
    "order_id": order_id,
    "customer_id": customer_id,
    "product_id": product_id,
    "warehouse_id": warehouse_id,
    "qty": qty,
    "cid": cid,
    "discount": discount,
    "pid": pid,
    "unit_price": unit_price,
    "wid": wid,
    "shipping_cost": shipping_cost,
}
expected_total = np.array([95.0, 72.0, 167.0, 58.0], dtype=np.float32)

1. Pandas — pass DataFrames as input_dtypes#

When pandas DataFrame objects are passed as input_dtypes, dataframe_to_onnx() extracts column names and dtypes automatically. This is the most concise entry point for code that already builds its tables as pandas DataFrames.

import pandas as pd  # noqa: E402

pd_orders = pd.DataFrame(
    {
        "order_id": order_id,
        "customer_id": customer_id,
        "product_id": product_id,
        "warehouse_id": warehouse_id,
        "qty": qty,
    }
)
pd_customers = pd.DataFrame({"cid": cid, "discount": discount})
pd_products = pd.DataFrame({"pid": pid, "unit_price": unit_price})
pd_warehouses = pd.DataFrame({"wid": wid, "shipping_cost": shipping_cost})

The equivalent pandas pipeline using pandas.merge():

j1 = pd.merge(pd_orders, pd_customers, left_on="customer_id", right_on="cid")
j2 = pd.merge(j1, pd_products, left_on="product_id", right_on="pid")
j3 = pd.merge(j2, pd_warehouses, left_on="warehouse_id", right_on="wid")
j3["total"] = j3["qty"] * j3["unit_price"] * (1 - j3["discount"]) + j3["shipping_cost"]

def transform_pandas(orders, customers, products, warehouses):
    """Apply three consecutive inner joins and compute total order cost."""
    j1 = orders.join(customers, left_key="customer_id", right_key="cid")
    j2 = j1.join(products, left_key="product_id", right_key="pid")
    j3 = j2.join(warehouses, left_key="warehouse_id", right_key="wid")
    return j3.select(
        [
            j3["order_id"],
            j3["qty"],
            j3["discount"],
            j3["unit_price"],
            j3["shipping_cost"],
            (j3["qty"] * j3["unit_price"] * (1.0 - j3["discount"]) + j3["shipping_cost"]).alias(
                "total"
            ),
        ]
    )


artifact_pandas = dataframe_to_onnx(
    transform_pandas, [pd_orders, pd_customers, pd_products, pd_warehouses]
)

print("(pandas) ONNX input names :", artifact_pandas.input_names)
print("(pandas) ONNX output names:", artifact_pandas.output_names)

(pandas) ONNX input names : ['customer_id', 'product_id', 'warehouse_id', 'order_id', 'qty', 'cid', 'pid', 'wid', 'discount', 'unit_price', 'shipping_cost']
(pandas) ONNX output names: ['output_0', 'output_1', 'output_2', 'output_3', 'output_4', 'total']

Run with the reference evaluator and onnxruntime:

ref_pd = ExtendedReferenceEvaluator(artifact_pandas)
results_pd = ref_pd.run(None, feeds)
for name, val in zip(artifact_pandas.output_names, results_pd):
    print(f"  {name}: {val}")

total_idx_pd = artifact_pandas.output_names.index("total")
np.testing.assert_allclose(results_pd[total_idx_pd], expected_total, rtol=1e-5)
print("(pandas) Reference evaluator: totals match expected values ✓")

sess_pd = onnxruntime.InferenceSession(
    artifact_pandas.SerializeToString(), providers=["CPUExecutionProvider"]
)
ort_results_pd = sess_pd.run(None, feeds)
np.testing.assert_allclose(ort_results_pd[total_idx_pd], expected_total, rtol=1e-5)
print("(pandas) OnnxRuntime:         totals match expected values ✓")

  output_0: [1 2 3 4]
  output_1: [2. 1. 3. 1.]
  output_2: [0.1 0.2 0.1 0. ]
  output_3: [50. 80. 60. 50.]
  output_4: [5. 8. 5. 8.]
  total: [ 95.  72. 167.  58.]
(pandas) Reference evaluator: totals match expected values ✓
(pandas) OnnxRuntime:         totals match expected values ✓

2. Define the transform — three consecutive joins (dtype-dict style)#

The same transform function is used when input_dtypes is supplied as explicit dtype dicts — the entry point for code that mirrors the polars polars.LazyFrame API. The callable receives TracedDataFrame objects regardless of which flavour of input_dtypes is chosen.

def transform(orders, customers, products, warehouses):
    """Apply three consecutive inner joins and compute total order cost."""
    j1 = orders.join(customers, left_key="customer_id", right_key="cid")
    j2 = j1.join(products, left_key="product_id", right_key="pid")
    j3 = j2.join(warehouses, left_key="warehouse_id", right_key="wid")
    return j3.select(
        [
            j3["order_id"],
            j3["customer_id"],
            j3["product_id"],
            j3["warehouse_id"],
            j3["qty"],
            j3["discount"],
            j3["unit_price"],
            j3["shipping_cost"],
            (j3["qty"] * j3["unit_price"] * (1.0 - j3["discount"]) + j3["shipping_cost"]).alias(
                "total"
            ),
        ]
    )

3. Convert to ONNX (dtype-dict style)#

dataframe_to_onnx() traces transform and emits a self-contained ONNX model. The input_dtypes list describes each of the four input tables in the same order as the function arguments.

dtypes_orders = {
    "order_id": np.int64,
    "customer_id": np.int64,
    "product_id": np.int64,
    "warehouse_id": np.int64,
    "qty": np.float32,
}
dtypes_customers = {"cid": np.int64, "discount": np.float32}
dtypes_products = {"pid": np.int64, "unit_price": np.float32}
dtypes_warehouses = {"wid": np.int64, "shipping_cost": np.float32}

artifact = dataframe_to_onnx(
    transform, [dtypes_orders, dtypes_customers, dtypes_products, dtypes_warehouses]
)

print("ONNX input names :", artifact.input_names)
print("ONNX output names:", artifact.output_names)

ONNX input names : ['customer_id', 'product_id', 'warehouse_id', 'order_id', 'qty', 'cid', 'pid', 'wid', 'discount', 'unit_price', 'shipping_cost']
ONNX output names: ['output_0', 'output_1', 'output_2', 'output_3', 'output_4', 'output_5', 'output_6', 'output_7', 'total']

4. Run with the reference evaluator#

ExtendedReferenceEvaluator lets us verify the model without onnxruntime.

ref = ExtendedReferenceEvaluator(artifact)
ref_outputs = ref.run(None, feeds)

# Show the result
for name, val in zip(artifact.output_names, ref_outputs):
    print(f"  {name}: {val}")

# Verify totals manually:
# order 1: qty=2, price=50, disc=0.1, ship=5  → 2*50*0.9+5 = 95
# order 2: qty=1, price=80, disc=0.2, ship=8  → 1*80*0.8+8 = 72
# order 3: qty=3, price=60, disc=0.1, ship=5  → 3*60*0.9+5 = 167
# order 4: qty=1, price=50, disc=0.0, ship=8  → 1*50*1.0+8 = 58
total_idx = artifact.output_names.index("total")
np.testing.assert_allclose(ref_outputs[total_idx], expected_total, rtol=1e-5)
print("Reference evaluator: totals match expected values ✓")

  output_0: [1 2 3 4]
  output_1: [10 20 10 30]
  output_2: [100 200 300 100]
  output_3: [1000 2000 1000 2000]
  output_4: [2. 1. 3. 1.]
  output_5: [0.1 0.2 0.1 0. ]
  output_6: [50. 80. 60. 50.]
  output_7: [5. 8. 5. 8.]
  total: [ 95.  72. 167.  58.]
Reference evaluator: totals match expected values ✓

5. Run with onnxruntime#

The same feeds work transparently with onnxruntime.

sess = onnxruntime.InferenceSession(
    artifact.SerializeToString(), providers=["CPUExecutionProvider"]
)
ort_outputs = sess.run(None, feeds)
np.testing.assert_allclose(ort_outputs[total_idx], expected_total, rtol=1e-5)
print("OnnxRuntime:        totals match expected values ✓")

OnnxRuntime:        totals match expected values ✓

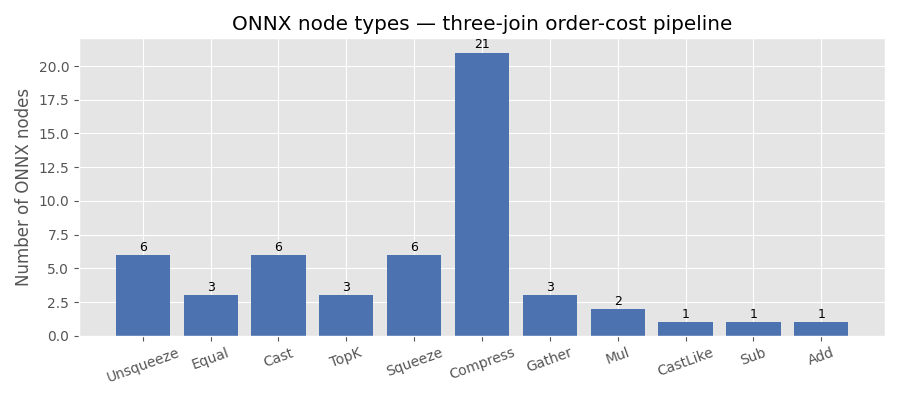

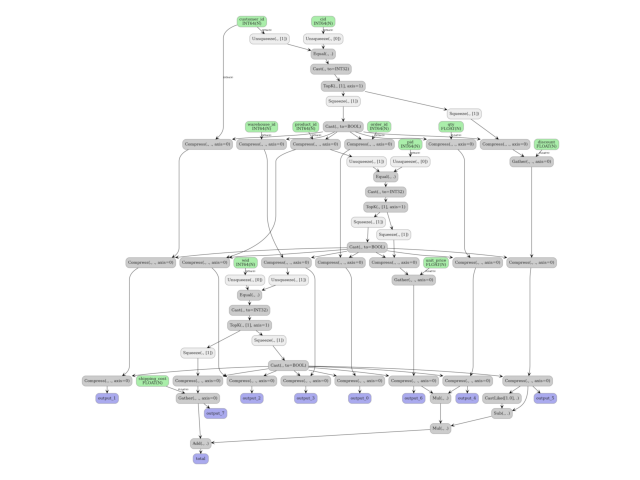

6. Inspect the ONNX graph#

Each join is translated to a broadcast equality check followed by ArgMax, Compress and Gather nodes. The total column is a simple chain of Mul, Sub and Add nodes.

print(pretty_onnx(artifact.proto))

opset: domain='' version=21
input: name='customer_id' type=dtype('int64') shape=['N']
input: name='product_id' type=dtype('int64') shape=['N']
input: name='warehouse_id' type=dtype('int64') shape=['N']
input: name='order_id' type=dtype('int64') shape=['N']
input: name='qty' type=dtype('float32') shape=['N']
input: name='cid' type=dtype('int64') shape=['N']
input: name='pid' type=dtype('int64') shape=['N']
input: name='wid' type=dtype('int64') shape=['N']
input: name='discount' type=dtype('float32') shape=['N']
input: name='unit_price' type=dtype('float32') shape=['N']
input: name='shipping_cost' type=dtype('float32') shape=['N']
init: name='init7_s1_1' type=int64 shape=(1,) -- array([1])           -- Opset.make_node.1/Shape##Opset.make_node.1/Shape##Opset.make_node.1/Shape##Opset.make_node.1/Shape##Opset.make_node.1/Shape##Opset.make_node.1/Shape##ReduceArgTopKPattern.K##ReduceArgTopKPattern.K##ReduceArgTopKPattern.K##ReduceArgTopKPattern.K##ReduceArgTopKPattern.K##ReduceArgTopKPattern.K
init: name='init7_s1_0' type=int64 shape=(1,) -- array([0])           -- Opset.make_node.1/Shape##Opset.make_node.1/Shape##Opset.make_node.1/Shape
init: name='select_total_l_r_l_lit' type=float32 shape=(1,) -- array([1.], dtype=float32)
Unsqueeze(customer_id, init7_s1_1) -> customer_id::UnSq1
Unsqueeze(cid, init7_s1_0) -> cid::UnSq0
  Equal(customer_id::UnSq1, cid::UnSq0) -> _onx_equal_customer_id::UnSq1
    Cast(_onx_equal_customer_id::UnSq1, to=6) -> _onx_equal_customer_id::UnSq1::C6
      TopK(_onx_equal_customer_id::UnSq1::C6, init7_s1_1, axis=1, largest=1) -> ReduceArgTopKPattern__onx_reducemax_equal_customer_id::UnSq1::C6, ReduceArgTopKPattern__onx_argmax_equal_customer_id::UnSq1::C6
        Squeeze(ReduceArgTopKPattern__onx_reducemax_equal_customer_id::UnSq1::C6, init7_s1_1) -> _onx_reducemax_equal_customer_id::UnSq1::C6
          Cast(_onx_reducemax_equal_customer_id::UnSq1::C6, to=9) -> _onx_reducemax_equal_customer_id::UnSq1::C6::C9
            Compress(customer_id, _onx_reducemax_equal_customer_id::UnSq1::C6::C9, axis=0) -> _onx_compress_customer_id
        Squeeze(ReduceArgTopKPattern__onx_argmax_equal_customer_id::UnSq1::C6, init7_s1_1) -> _onx_argmax_equal_customer_id::UnSq1::C6
          Compress(_onx_argmax_equal_customer_id::UnSq1::C6, _onx_reducemax_equal_customer_id::UnSq1::C6::C9, axis=0) -> _onx_compress_argmax_equal_customer_id::UnSq1::C6
            Gather(discount, _onx_compress_argmax_equal_customer_id::UnSq1::C6, axis=0) -> _onx_gather_discount
Compress(product_id, _onx_reducemax_equal_customer_id::UnSq1::C6::C9, axis=0) -> _onx_compress_product_id
  Unsqueeze(_onx_compress_product_id, init7_s1_1) -> _onx_compress_product_id::UnSq1
Compress(warehouse_id, _onx_reducemax_equal_customer_id::UnSq1::C6::C9, axis=0) -> _onx_compress_warehouse_id
Compress(order_id, _onx_reducemax_equal_customer_id::UnSq1::C6::C9, axis=0) -> _onx_compress_order_id
Compress(qty, _onx_reducemax_equal_customer_id::UnSq1::C6::C9, axis=0) -> _onx_compress_qty
Unsqueeze(pid, init7_s1_0) -> pid::UnSq0
  Equal(_onx_compress_product_id::UnSq1, pid::UnSq0) -> _onx_equal_compress_product_id::UnSq1
    Cast(_onx_equal_compress_product_id::UnSq1, to=6) -> _onx_equal_compress_product_id::UnSq1::C6
      TopK(_onx_equal_compress_product_id::UnSq1::C6, init7_s1_1, axis=1, largest=1) -> ReduceArgTopKPattern__onx_reducemax_equal_compress_product_id::UnSq1::C6, ReduceArgTopKPattern__onx_argmax_equal_compress_product_id::UnSq1::C6
        Squeeze(ReduceArgTopKPattern__onx_reducemax_equal_compress_product_id::UnSq1::C6, init7_s1_1) -> _onx_reducemax_equal_compress_product_id::UnSq1::C6
          Cast(_onx_reducemax_equal_compress_product_id::UnSq1::C6, to=9) -> _onx_reducemax_equal_compress_product_id::UnSq1::C6::C9
            Compress(_onx_compress_customer_id, _onx_reducemax_equal_compress_product_id::UnSq1::C6::C9, axis=0) -> _onx_compress_compress_customer_id
        Squeeze(ReduceArgTopKPattern__onx_argmax_equal_compress_product_id::UnSq1::C6, init7_s1_1) -> _onx_argmax_equal_compress_product_id::UnSq1::C6
          Compress(_onx_argmax_equal_compress_product_id::UnSq1::C6, _onx_reducemax_equal_compress_product_id::UnSq1::C6::C9, axis=0) -> _onx_compress_argmax_equal_compress_product_id::UnSq1::C6
            Gather(unit_price, _onx_compress_argmax_equal_compress_product_id::UnSq1::C6, axis=0) -> _onx_gather_unit_price
  Compress(_onx_compress_product_id, _onx_reducemax_equal_compress_product_id::UnSq1::C6::C9, axis=0) -> _onx_compress_compress_product_id
Compress(_onx_compress_warehouse_id, _onx_reducemax_equal_compress_product_id::UnSq1::C6::C9, axis=0) -> _onx_compress_compress_warehouse_id
  Unsqueeze(_onx_compress_compress_warehouse_id, init7_s1_1) -> _onx_compress_compress_warehouse_id::UnSq1
Compress(_onx_compress_order_id, _onx_reducemax_equal_compress_product_id::UnSq1::C6::C9, axis=0) -> _onx_compress_compress_order_id
Compress(_onx_compress_qty, _onx_reducemax_equal_compress_product_id::UnSq1::C6::C9, axis=0) -> _onx_compress_compress_qty
Compress(_onx_gather_discount, _onx_reducemax_equal_compress_product_id::UnSq1::C6::C9, axis=0) -> _onx_compress_gather_discount
Unsqueeze(wid, init7_s1_0) -> wid::UnSq0
  Equal(_onx_compress_compress_warehouse_id::UnSq1, wid::UnSq0) -> _onx_equal_compress_compress_warehouse_id::UnSq1
    Cast(_onx_equal_compress_compress_warehouse_id::UnSq1, to=6) -> _onx_equal_compress_compress_warehouse_id::UnSq1::C6
      TopK(_onx_equal_compress_compress_warehouse_id::UnSq1::C6, init7_s1_1, axis=1, largest=1) -> ReduceArgTopKPattern__onx_reducemax_equal_compress_compress_warehouse_id::UnSq1::C6, ReduceArgTopKPattern__onx_argmax_equal_compress_compress_warehouse_id::UnSq1::C6
        Squeeze(ReduceArgTopKPattern__onx_reducemax_equal_compress_compress_warehouse_id::UnSq1::C6, init7_s1_1) -> _onx_reducemax_equal_compress_compress_warehouse_id::UnSq1::C6
          Cast(_onx_reducemax_equal_compress_compress_warehouse_id::UnSq1::C6, to=9) -> _onx_reducemax_equal_compress_compress_warehouse_id::UnSq1::C6::C9
            Compress(_onx_compress_compress_customer_id, _onx_reducemax_equal_compress_compress_warehouse_id::UnSq1::C6::C9, axis=0) -> output_1
        Squeeze(ReduceArgTopKPattern__onx_argmax_equal_compress_compress_warehouse_id::UnSq1::C6, init7_s1_1) -> _onx_argmax_equal_compress_compress_warehouse_id::UnSq1::C6
          Compress(_onx_argmax_equal_compress_compress_warehouse_id::UnSq1::C6, _onx_reducemax_equal_compress_compress_warehouse_id::UnSq1::C6::C9, axis=0) -> _onx_compress_argmax_equal_compress_compress_warehouse_id::UnSq1::C6
            Gather(shipping_cost, _onx_compress_argmax_equal_compress_compress_warehouse_id::UnSq1::C6, axis=0) -> output_7
    Compress(_onx_compress_compress_product_id, _onx_reducemax_equal_compress_compress_warehouse_id::UnSq1::C6::C9, axis=0) -> output_2
  Compress(_onx_compress_compress_warehouse_id, _onx_reducemax_equal_compress_compress_warehouse_id::UnSq1::C6::C9, axis=0) -> output_3
Compress(_onx_compress_compress_order_id, _onx_reducemax_equal_compress_compress_warehouse_id::UnSq1::C6::C9, axis=0) -> output_0
Compress(_onx_compress_compress_qty, _onx_reducemax_equal_compress_compress_warehouse_id::UnSq1::C6::C9, axis=0) -> output_4
Compress(_onx_compress_gather_discount, _onx_reducemax_equal_compress_compress_warehouse_id::UnSq1::C6::C9, axis=0) -> output_5
  CastLike(select_total_l_r_l_lit, output_5) -> _onx_castlike_select_total_l_r_l_lit
  Sub(_onx_castlike_select_total_l_r_l_lit, output_5) -> _onx_sub_castlike_select_total_l_r_l_lit
Compress(_onx_gather_unit_price, _onx_reducemax_equal_compress_compress_warehouse_id::UnSq1::C6::C9, axis=0) -> output_6
  Mul(output_4, output_6) -> _onx_mul_compress_compress_compress_qty
    Mul(_onx_mul_compress_compress_compress_qty, _onx_sub_castlike_select_total_l_r_l_lit) -> _onx_mul_mul_compress_compress_compress_qty
      Add(_onx_mul_mul_compress_compress_compress_qty, output_7) -> total
output: name='output_0' type='NOTENSOR' shape=None
output: name='output_1' type='NOTENSOR' shape=None
output: name='output_2' type='NOTENSOR' shape=None
output: name='output_3' type='NOTENSOR' shape=None
output: name='output_4' type='NOTENSOR' shape=None
output: name='output_5' type='NOTENSOR' shape=None
output: name='output_6' type='NOTENSOR' shape=None
output: name='output_7' type='NOTENSOR' shape=None
output: name='total' type='NOTENSOR' shape=None

7. Node count per join step#

The bar chart below shows how many ONNX nodes are added by each join and how the final arithmetic expression fits in.

import matplotlib.pyplot as plt  # noqa: E402

op_types: dict[str, int] = {}
for node in artifact.proto.graph.node:
    op_types[node.op_type] = op_types.get(node.op_type, 0) + 1

fig, ax = plt.subplots(figsize=(9, 4))
bars = ax.bar(list(op_types.keys()), list(op_types.values()), color="#4c72b0")
ax.set_ylabel("Number of ONNX nodes")
ax.set_title("ONNX node types — three-join order-cost pipeline")
for bar, count in zip(bars, op_types.values()):
    ax.text(
        bar.get_x() + bar.get_width() / 2,
        bar.get_height() + 0.1,
        str(count),
        ha="center",
        va="bottom",
        fontsize=9,
    )
ax.tick_params(axis="x", labelrotation=20)
plt.tight_layout()
plt.show()
ONNX node types — three-join order-cost pipeline

8. Display the ONNX graph#

plot_dot() renders the full ONNX graph so you can trace how data flows from the four input tables to the final total output.

from yobx.doc import plot_dot  # noqa: E402

plot_dot(artifact.proto)
plot polars three joins to onnx

Total running time of the script: (0 minutes 1.393 seconds)

Related examples

SQL queries to ONNX

SQL queries to ONNX

Three Consecutive Joins to ONNX (pandas and polars-style)

Three Consecutive Joins to ONNX (pandas and polars-style)

Gallery generated by Sphinx-Gallery
