Computed Shapes: Add + Concat + Reshape

This example shows how BasicShapeBuilder tracks symbolic dimension expressions through a sequence of Add, Concat, and Reshape nodes, and compares the result with the standard onnx.shape_inference.infer_shapes() and the onnx-shape-inference package from PyPI.

The key difference is that onnx.shape_inference.infer_shapes can only propagate shapes when dimensions are statically known integers. When the model contains dynamic (symbolic) dimensions it typically assigns None (unknown) to most intermediate results. BasicShapeBuilder instead keeps the dimensions as symbolic arithmetic expressions so that output shapes are expressed in terms of the input dimension names.

The onnx-shape-inference package also performs symbolic shape inference using SymPy to track dimension expressions across nodes. It operates on the onnx-ir representation of the model.

See ShapeBuilder for a detailed description of how BasicShapeBuilder works and a comparison table with onnx.shape_inference.infer_shapes().

import numpy as np
import pandas
import onnx
import onnx_ir as ir
import onnxruntime
import onnx.helper as oh
import onnx.numpy_helper as onh
from onnx_shape_inference import infer_symbolic_shapes
from yobx.xshape import BasicShapeBuilder

TFLOAT = onnx.TensorProto.FLOAT
TINT64 = onnx.TensorProto.INT64

Helper functions for shape inference

The three shape-inference approaches used throughout this example are each wrapped in a small helper so the same logic can be reused without repetition.

def infer_shapes_onnx(model: onnx.ModelProto) -> dict:
    """Run :func:`onnx.shape_inference.infer_shapes`; return ``{name: shape}``."""
    inferred = onnx.shape_inference.infer_shapes(model)
    shapes = {}
    for vi in [*inferred.graph.input, *inferred.graph.value_info, *inferred.graph.output]:
        t = vi.type.tensor_type
        if t.HasField("shape"):
            shapes[vi.name] = tuple(
                d.dim_param if d.dim_param else (d.dim_value if d.dim_value else None)
                for d in t.shape.dim
            )
        else:
            shapes[vi.name] = "unknown"
    return shapes


def infer_shapes_onnx_ir(model: onnx.ModelProto) -> dict:
    """Run onnx-shape-inference :func:`infer_symbolic_shapes`; return ``{name: shape}``."""
    ir_model = ir.serde.deserialize_model(model)
    ir_model = infer_symbolic_shapes(ir_model)
    shapes = {}
    for v in ir_model.graph.inputs:
        shapes[v.name] = str(v.shape)
    for node in ir_model.graph:
        for out in node.outputs:
            shapes[out.name] = str(out.shape)
    return shapes


def infer_shapes_basic(model: onnx.ModelProto) -> BasicShapeBuilder:
    """Run :class:`BasicShapeBuilder` over *model*; return the populated builder."""
    b = BasicShapeBuilder()
    b.run_model(model)
    return b


def print_shapes(shapes, names: list) -> None:
    """Print shapes for *names* from *shapes*.

    *shapes* may be either a ``{name: shape}`` dict (as returned by
    :func:`infer_shapes_onnx` and :func:`infer_shapes_onnx_ir`) or a
    :class:`BasicShapeBuilder` instance (as returned by
    :func:`infer_shapes_basic`).
    """
    for name in names:
        if isinstance(shapes, dict):
            shape = shapes.get(name, "unknown")
        else:
            shape = shapes.get_shape(name)
        print(f"  {name:15s}  shape={shape}")


def make_shape_comparison_table(model: onnx.ModelProto, names: list) -> pandas.DataFrame:
    """Build a side-by-side shape comparison DataFrame for *model*.

    Runs all three inference tools and returns a :class:`pandas.DataFrame`
    with one row per tensor name and one column per tool.

    Columns: ``onnx``, ``onnx_ir``, ``basic``.
    """
    onnx_shapes = infer_shapes_onnx(model)
    ir_shapes = infer_shapes_onnx_ir(model)
    basic = infer_shapes_basic(model)
    rows = []
    for name in names:
        rows.append(
            {
                "name": name,
                "onnx": str(onnx_shapes.get(name, "unknown")),
                "onnx_ir": str(ir_shapes.get(name, "unknown")),
                "basic": str(basic.get_shape(name)),
            }
        )
    return pandas.DataFrame(rows).set_index("name")

Build a small model

The graph performs the following steps:

1. Add(X, Y) — element-wise addition of two tensors with shape (batch, seq, d_model).

2. Concat(added, X, axis=2) — concatenate the result with the original X along the last axis, giving shape (batch, seq, 2*d_model).

3. Reshape(concat_out, shape) — flatten the last two dimensions using a fixed shape constant [0, 0, -1], which collapses (batch, seq, 2*d_model) back to (batch, seq, 2*d_model).

model = oh.make_model(
    oh.make_graph(
        [
            oh.make_node("Add", ["X", "Y"], ["added"]),
            oh.make_node("Concat", ["added", "X"], ["concat_out"], axis=2),
            oh.make_node("Reshape", ["concat_out", "reshape_shape"], ["Z"]),
        ],
        "add_concat_reshape",
        [
            oh.make_tensor_value_info("X", TFLOAT, ["batch", "seq", "d_model"]),
            oh.make_tensor_value_info("Y", TFLOAT, ["batch", "seq", "d_model"]),
        ],
        [oh.make_tensor_value_info("Z", TFLOAT, [None, None, None])],
        [onh.from_array(np.array([0, 0, -1], dtype=np.int64), name="reshape_shape")],
    ),
    opset_imports=[oh.make_opsetid("", 18)],
    ir_version=10,
)

Shape inference with ONNX

onnx.shape_inference.infer_shapes propagates shapes through the model. For dynamic dimensions the inferred shapes for intermediate results are often unknown (None).

print("=== onnx.shape_inference.infer_shapes ===")
for name, shape in infer_shapes_onnx(model).items():
    print(f"  {name:15s}  shape={shape}")

=== onnx.shape_inference.infer_shapes ===
  X                shape=('batch', 'seq', 'd_model')
  Y                shape=('batch', 'seq', 'd_model')
  added            shape=('batch', 'seq', 'd_model')
  concat_out       shape=('batch', 'seq', 'unk__0')
  Z                shape=('batch', 'seq', 'unk__1')

Shape inference with onnx-shape-inference (PyPI)

The onnx-shape-inference package offers a second symbolic approach. It works on the onnx_ir.Model representation and uses SymPy to track dimension expressions. Install it with pip install onnx-shape-inference.

Compared with onnx.shape_inference.infer_shapes, it successfully resolves the Concat output to (batch, seq, 2*d_model). The Reshape output receives a freshly-generated symbol (_d0) because the [0, 0, -1] constant shape tensor is not yet fully evaluated by this library.

onnx_ir_shapes = infer_shapes_onnx_ir(model)

print("=== onnx-shape-inference (infer_symbolic_shapes) ===")
print_shapes(onnx_ir_shapes, ["X", "Y", "added", "concat_out", "Z"])

=== onnx-shape-inference (infer_symbolic_shapes) ===
  X                shape=[batch,seq,d_model]
  Y                shape=[batch,seq,d_model]
  added            shape=[batch,seq,d_model]
  concat_out       shape=[batch,seq,2*d_model]
  Z                shape=[batch,seq,_d0]

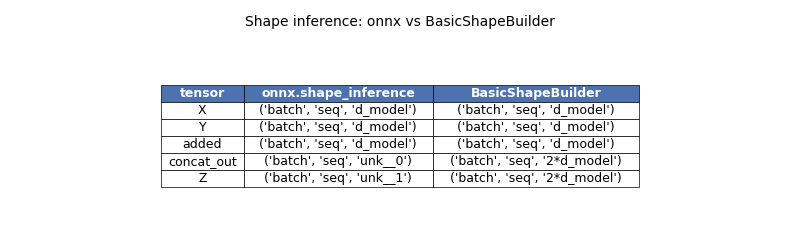

Shape inference with BasicShapeBuilder

BasicShapeBuilder keeps the shapes as symbolic expressions. Because reshape_shape is a constant [0, 0, -1], the builder can evaluate the Reshape and express the output shape as a function of the input dimensions.

builder = infer_shapes_basic(model)

print("\n=== BasicShapeBuilder ===")
print_shapes(builder, ["X", "Y", "added", "concat_out", "Z"])

=== BasicShapeBuilder ===
  X                shape=('batch', 'seq', 'd_model')
  Y                shape=('batch', 'seq', 'd_model')
  added            shape=('batch', 'seq', 'd_model')
  concat_out       shape=('batch', 'seq', '2*d_model')
  Z                shape=('batch', 'seq', '2*d_model')

Evaluate symbolic shapes with concrete values

Once the concrete values of the dynamic dimensions are known, evaluate_shape resolves each symbolic expression to its actual integer value.

context = dict(batch=2, seq=5, d_model=8)
for name in ["X", "Y", "added", "concat_out", "Z"]:
    concrete = builder.evaluate_shape(name, context)
    print(f"  {name:15s}  concrete shape={concrete}")

X                concrete shape=(2, 5, 8)
Y                concrete shape=(2, 5, 8)
added            concrete shape=(2, 5, 8)
concat_out       concrete shape=(2, 5, 16)
Z                concrete shape=(2, 5, 16)

Verify with real data

Finally, run the model with concrete numpy arrays and confirm that the shapes predicted by BasicShapeBuilder match the actual output shapes.

feeds = {
    "X": np.random.rand(2, 5, 8).astype(np.float32),
    "Y": np.random.rand(2, 5, 8).astype(np.float32),
}

session = onnxruntime.InferenceSession(
    model.SerializeToString(), providers=["CPUExecutionProvider"]
)
outputs = session.run(None, feeds)
result = builder.compare_with_true_inputs(feeds, outputs)
print("\n=== shape comparison ===")
data = []
for name, dims in result.items():
    obs = dict(result=name)
    for i, dim in enumerate(dims):
        for c, v in zip(["expression", "expected", "computed"], dim):
            data.append(dict(result=name, dimension=i, col=c, value=v))
print(pandas.DataFrame(data).pivot(index=["result", "dimension"], columns="col", values="value"))

=== shape comparison ===
col              computed expected expression
result dimension
Z      0                2        2      batch
       1                5        5        seq
       2               16       16  2*d_model

Impact of named output shapes on constraints (NonZero)

Some operators—such as NonZero—introduce a fresh symbolic dimension for their output because the number of results depends on the values of the input tensor, not merely its shape. BasicShapeBuilder assigns an internal name like NEWDIM_nonzero_0 to that dimension.

When the graph output is declared without named dimensions (all None), the internal name is kept as-is and no constraint is registered.

When the graph output is declared with named dimensions (e.g. ["rank", "nnz"]), run_value_info detects the mismatch between the computed internal name NEWDIM_nonzero_0 and the user-supplied name nnz, and registers the constraint NEWDIM_nonzero_0 = nnz. The dimension naming step then renames the internal token to the user-visible name across all shapes.

The two models share the same 7-node graph topology: Abs → Relu → Add → Mul → NonZero(nz) → Transpose → Cast(nz_float). They differ only in how the graph outputs are annotated.

_NZ_NODES = [
    oh.make_node("Abs", ["X"], ["abs_out"]),
    oh.make_node("Relu", ["abs_out"], ["relu_out"]),
    oh.make_node("Add", ["relu_out", "relu_out"], ["double_out"]),
    oh.make_node("Mul", ["double_out", "relu_out"], ["mul_out"]),
    oh.make_node("NonZero", ["mul_out"], ["nz"]),
    oh.make_node("Transpose", ["nz"], ["transposed_nz"]),
    oh.make_node("Cast", ["transposed_nz"], ["nz_float"], to=TFLOAT),
]
_NZ_INPUT = [oh.make_tensor_value_info("X", TFLOAT, ["batch", "seq"])]
_NZ_NAMES = [
    "X",
    "abs_out",
    "relu_out",
    "double_out",
    "mul_out",
    "nz",
    "transposed_nz",
    "nz_float",
]

Anonymous output shapes ([None, None]): the data-dependent dimension keeps the internal placeholder NEWDIM_nonzero_0 and no constraint is registered.

nz_model_anon = oh.make_model(
    oh.make_graph(
        _NZ_NODES,
        "nonzero_anon",
        _NZ_INPUT,
        [
            oh.make_tensor_value_info("nz", TINT64, [None, None]),
            oh.make_tensor_value_info("nz_float", TFLOAT, [None, None]),
        ],
    ),
    opset_imports=[oh.make_opsetid("", 18)],
    ir_version=10,
)

Named output shapes (["rank", "nnz"]): the constraint NEWDIM_nonzero_0 = nnz is registered and the placeholder is renamed throughout the graph.

nz_model_named = oh.make_model(
    oh.make_graph(
        _NZ_NODES,
        "nonzero_named",
        _NZ_INPUT,
        [
            oh.make_tensor_value_info("nz", TINT64, ["rank", "nnz"]),
            oh.make_tensor_value_info("nz_float", TFLOAT, ["do1", "do2"]),
        ],
    ),
    opset_imports=[oh.make_opsetid("", 18)],
    ir_version=10,
)

Comparison table — anonymous output shapes

With [None, None] output annotations the data-dependent dimension is kept as the internal placeholder NEWDIM_nonzero_0 by BasicShapeBuilder; no constraint is registered.

print("=== anonymous output shapes ===")
print(make_shape_comparison_table(nz_model_anon, _NZ_NAMES).to_string())

=== anonymous output shapes ===
                           onnx      onnx_ir                    basic
name
X              ('batch', 'seq')  [batch,seq]         ('batch', 'seq')
abs_out        ('batch', 'seq')  [batch,seq]         ('batch', 'seq')
relu_out       ('batch', 'seq')  [batch,seq]         ('batch', 'seq')
double_out     ('batch', 'seq')  [batch,seq]         ('batch', 'seq')
mul_out        ('batch', 'seq')  [batch,seq]         ('batch', 'seq')
nz                (2, 'unk__0')      [2,_d0]  (2, 'NEWDIM_nonzero_0')
transposed_nz     ('unk__0', 2)      [_d0,2]  ('NEWDIM_nonzero_0', 2)
nz_float          ('unk__0', 2)      [_d0,2]  ('NEWDIM_nonzero_0', 2)

Registered constraints (anonymous model):

anon_builder = infer_shapes_basic(nz_model_anon)
print("constraints:", anon_builder.get_registered_constraints())

constraints: {}

Comparison table — named output shapes

With ["rank", "nnz"] output annotations BasicShapeBuilder registers the constraint NEWDIM_nonzero_0 = nnz and renames the placeholder everywhere, so nz shape becomes (2, 'nnz') and the propagation continues through Transpose and Cast.

print("=== named output shapes ===")
print(make_shape_comparison_table(nz_model_named, _NZ_NAMES).to_string())

=== named output shapes ===
                           onnx      onnx_ir             basic
name
X              ('batch', 'seq')  [batch,seq]  ('batch', 'seq')
abs_out        ('batch', 'seq')  [batch,seq]  ('batch', 'seq')
relu_out       ('batch', 'seq')  [batch,seq]  ('batch', 'seq')
double_out     ('batch', 'seq')  [batch,seq]  ('batch', 'seq')
mul_out        ('batch', 'seq')  [batch,seq]  ('batch', 'seq')
nz                   (2, 'nnz')      [2,nnz]        (2, 'do1')
transposed_nz        ('nnz', 2)      [nnz,2]        ('do1', 2)
nz_float             ('do1', 2)      [do1,2]        ('do1', 2)

Registered constraints (named model):

named_builder = infer_shapes_basic(nz_model_named)
print("constraints:", named_builder.get_registered_constraints())

constraints: {'NEWDIM_nonzero_0': {'nnz', 'do1'}}
