Comparing the three evaluators#

yobx ships three evaluators that share the same run(outputs, feeds) interface but differ in their backend:

ExtendedReferenceEvaluator — pure Python / NumPy, extends onnx.reference.ReferenceEvaluator with contrib-op kernels. No ONNX Runtime dependency.
OnnxruntimeEvaluator — runs each node individually through onnxruntime.InferenceSession. Allows full intermediate-result inspection.
TorchReferenceEvaluator — hand-written PyTorch kernels; inputs and outputs are torch.Tensor; supports CUDA.

This example runs the same model through all three and verifies the outputs agree.

import numpy as np
import onnx
import onnx.helper as oh
import torch
from yobx.reference import ExtendedReferenceEvaluator
from yobx.reference.onnxruntime_evaluator import OnnxruntimeEvaluator
from yobx.reference.torch_evaluator import TorchReferenceEvaluator

TFLOAT = onnx.TensorProto.FLOAT

Build a small model#

The model computes Z = Tanh(X + Y).

model = oh.make_model(
    oh.make_graph(
        [oh.make_node("Add", ["X", "Y"], ["T"]), oh.make_node("Tanh", ["T"], ["Z"])],
        "add_tanh",
        [
            oh.make_tensor_value_info("X", TFLOAT, [None, None]),
            oh.make_tensor_value_info("Y", TFLOAT, [None, None]),
        ],
        [oh.make_tensor_value_info("Z", TFLOAT, [None, None])],
    ),
    opset_imports=[oh.make_opsetid("", 18)],
    ir_version=10,
)

x = np.array([[1.0, -2.0], [3.0, -4.0]], dtype=np.float32)
y = np.array([[0.5, 0.5], [-0.5, -0.5]], dtype=np.float32)

1. ExtendedReferenceEvaluator#

Pure Python / NumPy. A drop-in replacement for onnx.reference.ReferenceEvaluator that also handles contrib ops.

ref = ExtendedReferenceEvaluator(model)
(result_ref,) = ref.run(None, {"X": x, "Y": y})
print("ExtendedReferenceEvaluator:", result_ref)

ExtendedReferenceEvaluator: [[ 0.9051482  -0.9051482 ]
 [ 0.9866143  -0.99975324]]

2. OnnxruntimeEvaluator#

Executes each node via ONNX Runtime. Setting intermediate=True returns a dictionary with all intermediate results, which is very handy when debugging a model.

ort_eval = OnnxruntimeEvaluator(model)
(result_ort,) = ort_eval.run(None, {"X": x, "Y": y})
print("OnnxruntimeEvaluator:", result_ort)

OnnxruntimeEvaluator: [[ 0.9051482  -0.9051482 ]
 [ 0.98661435 -0.9997532 ]]

Retrieve intermediate results:

all_intermediates = ort_eval.run(None, {"X": x, "Y": y}, intermediate=True)
for name, value in sorted(all_intermediates.items()):
    print(f"  {name}: {value}")

 T: [[ 1.5 -1.5]
[ 2.5 -4.5]]
 X: [[ 1. -2.]
[ 3. -4.]]
 Y: [[ 0.5  0.5]
[-0.5 -0.5]]
 Z: [[ 0.9051482  -0.9051482 ]
[ 0.98661435 -0.9997532 ]]

3. TorchReferenceEvaluator#

All computation uses PyTorch tensors. The same model can run on CUDA by passing providers=["CUDAExecutionProvider"].

torch_eval = TorchReferenceEvaluator(model)
x_t = torch.from_numpy(x)
y_t = torch.from_numpy(y)
(result_torch,) = torch_eval.run(None, {"X": x_t, "Y": y_t})
print("TorchReferenceEvaluator:", result_torch)

TorchReferenceEvaluator: tensor([[ 0.9051, -0.9051],
        [ 0.9866, -0.9998]])

Verify all three evaluators agree#

assert np.allclose(result_ref, result_ort), "ExtendedRef vs ORT mismatch"
assert np.allclose(result_ref, result_torch.numpy()), "ExtendedRef vs Torch mismatch"
print("All three evaluators produce the same result ✓")

All three evaluators produce the same result ✓

Summary#

Evaluator	Input/output type	Highlights
ExtendedReferenceEvaluator	NumPy ndarray	No ORT required; contrib ops
OnnxruntimeEvaluator	NumPy or PyTorch	intermediate=True; ORT backend
TorchReferenceEvaluator	torch.Tensor	CUDA support; no round-trip

Plot: outputs from all three evaluators#

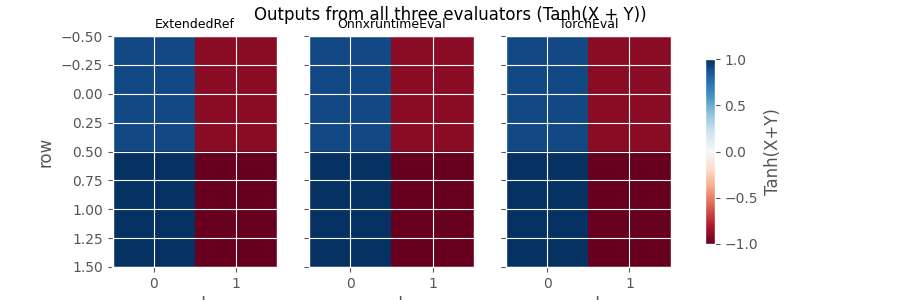

The heat-maps below show the Tanh(X + Y) output produced by each evaluator. All three panels are identical, confirming the results agree.

import matplotlib.pyplot as plt  # noqa: E402

fig, axes = plt.subplots(1, 3, figsize=(9, 3), sharey=True)
labels = ["ExtendedRef", "OnnxruntimeEval", "TorchEval"]
results_all = [result_ref, result_ort, result_torch.numpy()]
for ax, label, res in zip(axes, labels, results_all):
    im = ax.imshow(res, cmap="RdBu", vmin=-1, vmax=1, aspect="auto")
    ax.set_title(label, fontsize=9)
    ax.set_xlabel("col")
axes[0].set_ylabel("row")
fig.colorbar(im, ax=axes.tolist(), shrink=0.8, label="Tanh(X+Y)")
fig.suptitle("Outputs from all three evaluators (Tanh(X + Y))")
plt.show()
