Exporting FunctionTransformer with numpy tracing

yobx.sklearn.to_onnx() can convert a FunctionTransformer that wraps any numpy function — without writing a custom converter. The conversion works by tracing: the function is re-executed with lightweight NumpyArray proxies instead of real arrays. Every numpy operation performed on those proxies is recorded as an ONNX node, so the resulting graph exactly mirrors the Python code.

This example covers:

1. Standalone tracing — converting a plain numpy function directly to an ONNX model via trace_numpy_to_onnx().

2. FunctionTransformer — converting a fitted FunctionTransformer with yobx.sklearn.to_onnx().

3. Pipeline — embedding the transformer in a Pipeline with a downstream scaler.

See Numpy-Tracing and FunctionTransformer for a detailed explanation of the tracing mechanism.

import numpy as np
import onnxruntime
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import FunctionTransformer, StandardScaler

from yobx.doc import plot_dot
from yobx.sklearn import to_onnx
from yobx.xtracing import trace_numpy_to_onnx

1. Standalone tracing with trace_numpy_to_onnx

The simplest entry point is trace_numpy_to_onnx(). Pass the function and a representative sample array; only the dtype and shape of the sample are used — the actual values are ignored.

def normalize_rows(X):
    """Divide each row by its L2 norm (safe against zero rows)."""
    norms = np.sqrt(np.sum(X**2, axis=1, keepdims=True))
    norms = np.where(norms < np.float32(1e-8), np.float32(1), norms)
    return X / norms


rng = np.random.default_rng(0)
X_sample = rng.standard_normal((10, 4)).astype(np.float32)

onx_standalone = trace_numpy_to_onnx(normalize_rows, X_sample)

print("Nodes in the standalone ONNX model:")
for node in onx_standalone.graph.node:
    print(f"  {node.op_type}")

Nodes in the standalone ONNX model:
  Pow
  ReduceSum
  Sqrt
  Less
  Where
  Div

Verify numerical correctness against numpy:

ref = onnxruntime.InferenceSession(
    onx_standalone.SerializeToString(), providers=["CPUExecutionProvider"]
)
X_test = rng.standard_normal((5, 4)).astype(np.float32)
(onnx_out,) = ref.run(None, {"X": X_test})
numpy_out = normalize_rows(X_test)

print("\nMax absolute difference (standalone):", np.abs(onnx_out - numpy_out).max())
assert np.allclose(onnx_out, numpy_out, atol=1e-5), "Mismatch in standalone model!"
print("Standalone tracing ✓")

Max absolute difference (standalone): 5.9604645e-08
Standalone tracing ✓

2. Converting a FunctionTransformer

yobx.sklearn.to_onnx() uses the same tracing machinery automatically when it encounters a FunctionTransformer. The func is traced into the same ONNX graph — no sub-model inlining is needed.

def log1p_abs(X):
    return np.log1p(np.abs(X))


transformer = FunctionTransformer(func=log1p_abs)
transformer.fit(X_sample)

onx_ft = to_onnx(transformer, (X_sample[:1],))

print("\nNodes in the FunctionTransformer ONNX model:")
for node in onx_ft.graph.node:
    print(f"  {node.op_type}")

ref_ft = onnxruntime.InferenceSession(
    onx_ft.SerializeToString(), providers=["CPUExecutionProvider"]
)
(onnx_ft_out,) = ref_ft.run(None, {"X": X_test})
sklearn_ft_out = transformer.transform(X_test).astype(np.float32)

print(
    "\nMax absolute difference (FunctionTransformer):", np.abs(onnx_ft_out - sklearn_ft_out).max()
)
assert np.allclose(
    onnx_ft_out, sklearn_ft_out, atol=1e-5
), "Mismatch in FunctionTransformer model!"
print("FunctionTransformer ✓")

Nodes in the FunctionTransformer ONNX model:
  Abs
  Add
  Log

Max absolute difference (FunctionTransformer): 5.9604645e-08
FunctionTransformer ✓

3. Identity transformer (func=None)

When func=None the transformer is an identity operation. The converter emits a single Identity ONNX node.

identity_tf = FunctionTransformer(func=None)
identity_tf.fit(X_sample)

onx_id = to_onnx(identity_tf, (X_sample[:1],))

print("\nNodes in the identity transformer ONNX model:")
for node in onx_id.graph.node:
    print(f"  {node.op_type}")

ref_id = onnxruntime.InferenceSession(
    onx_id.SerializeToString(), providers=["CPUExecutionProvider"]
)
(onnx_id_out,) = ref_id.run(None, {"X": X_test})
assert np.allclose(onnx_id_out, X_test, atol=1e-6), "Identity mismatch!"
print("Identity transformer ✓")

Nodes in the identity transformer ONNX model:
  Identity
Identity transformer ✓

4. Embedding in a Pipeline

The traced operations land directly in the surrounding ONNX graph, so the full pipeline produces a single flat ONNX model.

pipe = Pipeline([("func", FunctionTransformer(func=log1p_abs)), ("scaler", StandardScaler())])

X_train = rng.standard_normal((80, 4)).astype(np.float32)
pipe.fit(X_train)

onx_pipe = to_onnx(pipe, (X_train[:1],))

print("\nNodes in the pipeline ONNX model:")
for node in onx_pipe.graph.node:
    print(f"  {node.op_type}")

ref_pipe = onnxruntime.InferenceSession(
    onx_pipe.SerializeToString(), providers=["CPUExecutionProvider"]
)
(onnx_pipe_out,) = ref_pipe.run(None, {"X": X_test})
sklearn_pipe_out = pipe.transform(X_test).astype(np.float32)

print("\nMax absolute difference (Pipeline):", np.abs(onnx_pipe_out - sklearn_pipe_out).max())
assert np.allclose(onnx_pipe_out, sklearn_pipe_out, atol=1e-5), "Pipeline mismatch!"
print("Pipeline ✓")

Nodes in the pipeline ONNX model:
  Abs
  Add
  Log
  Sub
  Div

Max absolute difference (Pipeline): 2.3841858e-07
Pipeline ✓

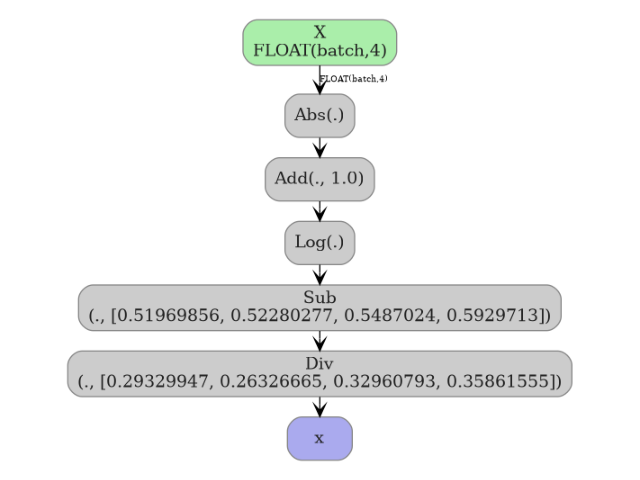

5. Visualize the pipeline graph

plot_dot(onx_pipe)

Related examples

Float32 vs Float64: precision loss with PLSRegression

Float32 vs Float64: precision loss with PLSRegression

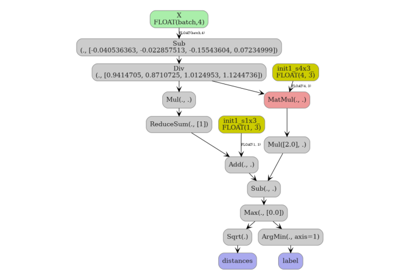

Converting a scikit-learn KMeans to ONNX

Converting a scikit-learn KMeans to ONNX

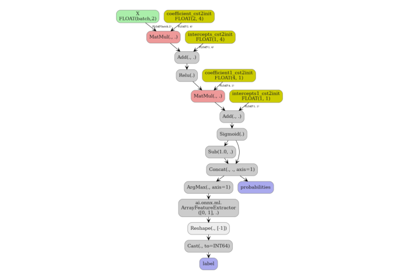

Using sklearn-onnx to convert any scikit-learn estimator
