yobx.helpers.dot_helper¶
- yobx.helpers.dot_helper.to_dot(model: ModelProto) str[source][source]¶

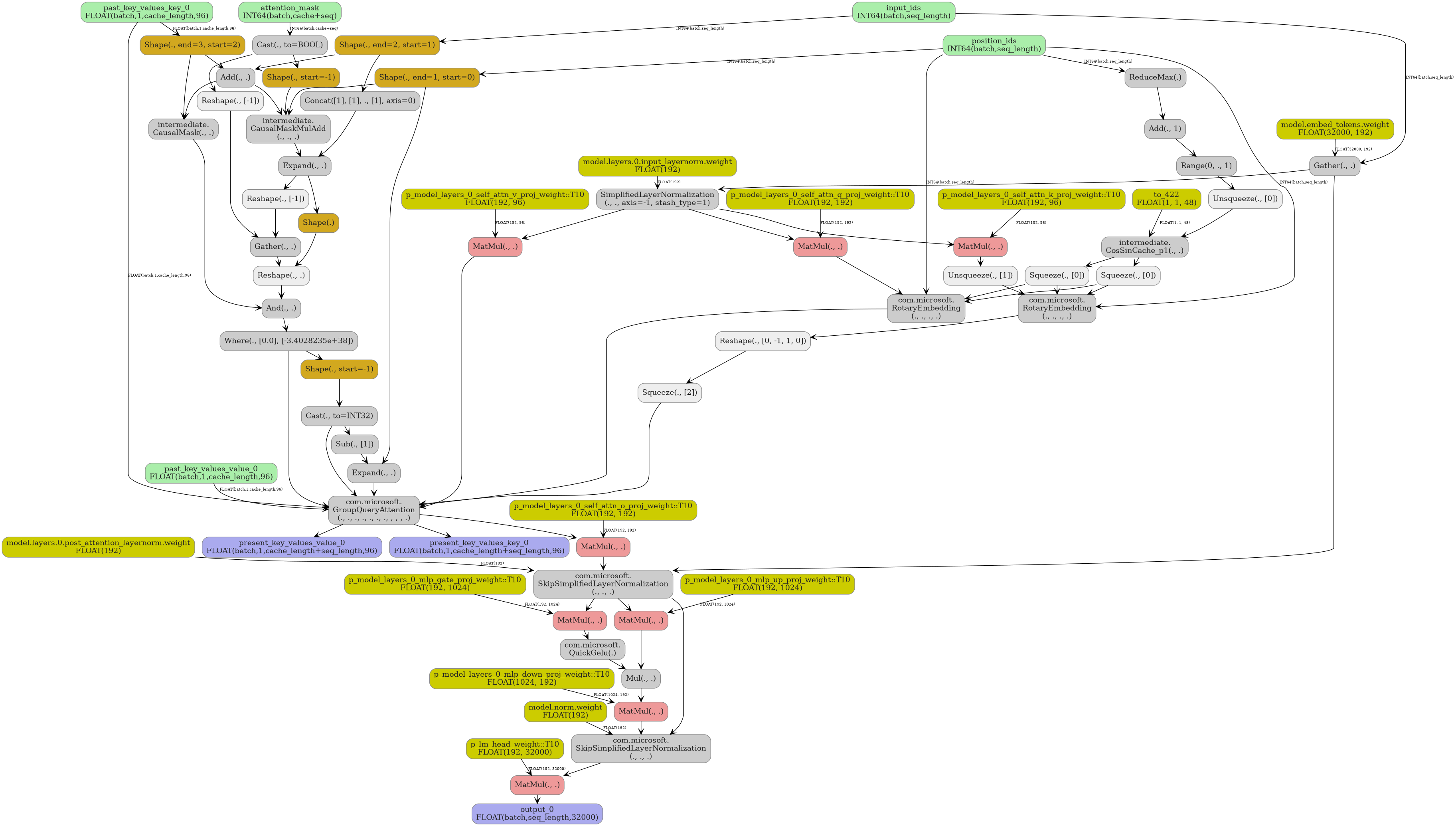

Converts a model into a dot graph. Here is an example:
![digraph {
graph [rankdir=TB, splines=true, overlap=false, nodesep=0.2, ranksep=0.2, fontsize=8];
node [style="rounded,filled", color="#888888", fontcolor="#222222", shape=box];
edge [arrowhead=vee, fontsize=7, labeldistance=-5, labelangle=0];
I_0 [label="input_ids\nINT64(batch,seq_length)", fillcolor="#aaeeaa"];
I_1 [label="attention_mask\nINT64(batch,cache+seq)", fillcolor="#aaeeaa"];
I_2 [label="position_ids\nINT64(batch,seq_length)", fillcolor="#aaeeaa"];
I_3 [label="past_key_values_key_0\nFLOAT(batch,1,cache_length,96)", fillcolor="#aaeeaa"];
I_4 [label="past_key_values_value_0\nFLOAT(batch,1,cache_length,96)", fillcolor="#aaeeaa"];
i_5 [label="p_model_layers_0_self_attn_q_proj_weight::T10\nFLOAT(192, 192)", fillcolor="#cccc00"];
i_6 [label="p_model_layers_0_self_attn_k_proj_weight::T10\nFLOAT(192, 96)", fillcolor="#cccc00"];
i_7 [label="p_model_layers_0_self_attn_v_proj_weight::T10\nFLOAT(192, 96)", fillcolor="#cccc00"];
i_8 [label="p_model_layers_0_self_attn_o_proj_weight::T10\nFLOAT(192, 192)", fillcolor="#cccc00"];
i_9 [label="p_model_layers_0_mlp_gate_proj_weight::T10\nFLOAT(192, 1024)", fillcolor="#cccc00"];
i_10 [label="p_model_layers_0_mlp_up_proj_weight::T10\nFLOAT(192, 1024)", fillcolor="#cccc00"];
i_11 [label="p_model_layers_0_mlp_down_proj_weight::T10\nFLOAT(1024, 192)", fillcolor="#cccc00"];
i_12 [label="p_lm_head_weight::T10\nFLOAT(192, 32000)", fillcolor="#cccc00"];
i_13 [label="to_422\nFLOAT(1, 1, 48)", fillcolor="#cccc00"];
i_14 [label="model.embed_tokens.weight\nFLOAT(32000, 192)", fillcolor="#cccc00"];
i_15 [label="model.layers.0.input_layernorm.weight\nFLOAT(192)", fillcolor="#cccc00"];
i_16 [label="model.layers.0.post_attention_layernorm.weight\nFLOAT(192)", fillcolor="#cccc00"];
i_17 [label="model.norm.weight\nFLOAT(192)", fillcolor="#cccc00"];
Shape_18 [label="Shape(., end=2, start=1)", fillcolor="#d2a81f"];
Shape_19 [label="Shape(., end=1, start=0)", fillcolor="#d2a81f"];
Shape_20 [label="Shape(., end=3, start=2)", fillcolor="#d2a81f"];
ReduceMax_21 [label="ReduceMax(.)", fillcolor="#cccccc"];
Add_22 [label="Add(., 1)", fillcolor="#cccccc"];
Range_23 [label="Range(0, ., 1)", fillcolor="#cccccc"];
Unsqueeze_24 [label="Unsqueeze(., [0])", fillcolor="#eeeeee"];
Add_25 [label="Add(., .)", fillcolor="#cccccc"];
CausalMask_26 [label="intermediate.\nCausalMask(., .)", fillcolor="#cccccc"];
Gather_27 [label="Gather(., .)", fillcolor="#cccccc"];
SimplifiedLayerNormalization_28 [label="SimplifiedLayerNormalization\n(., ., axis=-1, stash_type=1)", fillcolor="#cccccc"];
Cast_29 [label="Cast(., to=BOOL)", fillcolor="#cccccc"];
Shape_30 [label="Shape(., start=-1)", fillcolor="#d2a81f"];
CausalMaskMulAdd_31 [label="intermediate.\nCausalMaskMulAdd\n(., ., .)", fillcolor="#cccccc"];
Concat_32 [label="Concat([1], [1], ., [1], axis=0)", fillcolor="#cccccc"];
Expand_33 [label="Expand(., .)", fillcolor="#cccccc"];
Shape_34 [label="Shape(.)", fillcolor="#d2a81f"];
Reshape_35 [label="Reshape(., [-1])", fillcolor="#eeeeee"];
Reshape_36 [label="Reshape(., [-1])", fillcolor="#eeeeee"];
Gather_37 [label="Gather(., .)", fillcolor="#cccccc"];
Reshape_38 [label="Reshape(., .)", fillcolor="#eeeeee"];
And_39 [label="And(., .)", fillcolor="#cccccc"];
Where_40 [label="Where(., [0.0], [-3.4028235e+38])", fillcolor="#cccccc"];
Shape_41 [label="Shape(., start=-1)", fillcolor="#d2a81f"];
Cast_42 [label="Cast(., to=INT32)", fillcolor="#cccccc"];
Sub_43 [label="Sub(., [1])", fillcolor="#cccccc"];
CosSinCache_p1_44 [label="intermediate.\nCosSinCache_p1(., .)", fillcolor="#cccccc"];
Squeeze_45 [label="Squeeze(., [0])", fillcolor="#eeeeee"];
Squeeze_46 [label="Squeeze(., [0])", fillcolor="#eeeeee"];
MatMul_47 [label="MatMul(., .)", fillcolor="#ee9999"];
RotaryEmbedding_48 [label="com.microsoft.\nRotaryEmbedding\n(., ., ., .)", fillcolor="#cccccc"];
Expand_49 [label="Expand(., .)", fillcolor="#cccccc"];
MatMul_50 [label="MatMul(., .)", fillcolor="#ee9999"];
Unsqueeze_51 [label="Unsqueeze(., [1])", fillcolor="#eeeeee"];
RotaryEmbedding_52 [label="com.microsoft.\nRotaryEmbedding\n(., ., ., .)", fillcolor="#cccccc"];
MatMul_53 [label="MatMul(., .)", fillcolor="#ee9999"];
Reshape_54 [label="Reshape(., [0, -1, 1, 0])", fillcolor="#eeeeee"];
Squeeze_55 [label="Squeeze(., [2])", fillcolor="#eeeeee"];
GroupQueryAttention_56 [label="com.microsoft.\nGroupQueryAttention\n(., ., ., ., ., ., ., , , , .)", fillcolor="#cccccc"];
MatMul_57 [label="MatMul(., .)", fillcolor="#ee9999"];
SkipSimplifiedLayerNormalization_58 [label="com.microsoft.\nSkipSimplifiedLayerNormalization\n(., ., .)", fillcolor="#cccccc"];
MatMul_59 [label="MatMul(., .)", fillcolor="#ee9999"];
QuickGelu_60 [label="com.microsoft.\nQuickGelu(.)", fillcolor="#cccccc"];
MatMul_61 [label="MatMul(., .)", fillcolor="#ee9999"];
Mul_62 [label="Mul(., .)", fillcolor="#cccccc"];
MatMul_63 [label="MatMul(., .)", fillcolor="#ee9999"];
SkipSimplifiedLayerNormalization_64 [label="com.microsoft.\nSkipSimplifiedLayerNormalization\n(., ., .)", fillcolor="#cccccc"];
MatMul_65 [label="MatMul(., .)", fillcolor="#ee9999"];
I_0 -> Shape_18 [label="INT64(batch,seq_length)"];
I_2 -> Shape_19 [label="INT64(batch,seq_length)"];
I_3 -> Shape_20 [label="FLOAT(batch,1,cache_length,96)"];
I_2 -> ReduceMax_21 [label="INT64(batch,seq_length)"];
ReduceMax_21 -> Add_22;
Add_22 -> Range_23;
Range_23 -> Unsqueeze_24;
Shape_18 -> Add_25;
Shape_20 -> Add_25;
Shape_20 -> CausalMask_26;
Add_25 -> CausalMask_26;
i_14 -> Gather_27 [label="FLOAT(32000, 192)"];
I_0 -> Gather_27 [label="INT64(batch,seq_length)"];
Gather_27 -> SimplifiedLayerNormalization_28;
i_15 -> SimplifiedLayerNormalization_28 [label="FLOAT(192)"];
I_1 -> Cast_29 [label="INT64(batch,cache+seq)"];
Cast_29 -> Shape_30;
Add_25 -> CausalMaskMulAdd_31;
Shape_19 -> CausalMaskMulAdd_31;
Shape_30 -> CausalMaskMulAdd_31;
Shape_18 -> Concat_32;
CausalMaskMulAdd_31 -> Expand_33;
Concat_32 -> Expand_33;
Expand_33 -> Shape_34;
Cast_29 -> Reshape_35;
Expand_33 -> Reshape_36;
Reshape_35 -> Gather_37;
Reshape_36 -> Gather_37;
Gather_37 -> Reshape_38;
Shape_34 -> Reshape_38;
CausalMask_26 -> And_39;
Reshape_38 -> And_39;
And_39 -> Where_40;
Where_40 -> Shape_41;
Shape_41 -> Cast_42;
Cast_42 -> Sub_43;
Unsqueeze_24 -> CosSinCache_p1_44;
i_13 -> CosSinCache_p1_44 [label="FLOAT(1, 1, 48)"];
CosSinCache_p1_44 -> Squeeze_45;
CosSinCache_p1_44 -> Squeeze_46;
SimplifiedLayerNormalization_28 -> MatMul_47;
i_5 -> MatMul_47 [label="FLOAT(192, 192)"];
MatMul_47 -> RotaryEmbedding_48;
I_2 -> RotaryEmbedding_48 [label="INT64(batch,seq_length)"];
Squeeze_46 -> RotaryEmbedding_48;
Squeeze_45 -> RotaryEmbedding_48;
Sub_43 -> Expand_49;
Shape_19 -> Expand_49;
SimplifiedLayerNormalization_28 -> MatMul_50;
i_6 -> MatMul_50 [label="FLOAT(192, 96)"];
MatMul_50 -> Unsqueeze_51;
Unsqueeze_51 -> RotaryEmbedding_52;
I_2 -> RotaryEmbedding_52 [label="INT64(batch,seq_length)"];
Squeeze_46 -> RotaryEmbedding_52;
Squeeze_45 -> RotaryEmbedding_52;
SimplifiedLayerNormalization_28 -> MatMul_53;
i_7 -> MatMul_53 [label="FLOAT(192, 96)"];
RotaryEmbedding_52 -> Reshape_54;
Reshape_54 -> Squeeze_55;
RotaryEmbedding_48 -> GroupQueryAttention_56;
Squeeze_55 -> GroupQueryAttention_56;
MatMul_53 -> GroupQueryAttention_56;
I_3 -> GroupQueryAttention_56 [label="FLOAT(batch,1,cache_length,96)"];
I_4 -> GroupQueryAttention_56 [label="FLOAT(batch,1,cache_length,96)"];
Expand_49 -> GroupQueryAttention_56;
Cast_42 -> GroupQueryAttention_56;
Where_40 -> GroupQueryAttention_56;
GroupQueryAttention_56 -> MatMul_57;
i_8 -> MatMul_57 [label="FLOAT(192, 192)"];
Gather_27 -> SkipSimplifiedLayerNormalization_58;
MatMul_57 -> SkipSimplifiedLayerNormalization_58;
i_16 -> SkipSimplifiedLayerNormalization_58 [label="FLOAT(192)"];
SkipSimplifiedLayerNormalization_58 -> MatMul_59;
i_9 -> MatMul_59 [label="FLOAT(192, 1024)"];
MatMul_59 -> QuickGelu_60;
SkipSimplifiedLayerNormalization_58 -> MatMul_61;
i_10 -> MatMul_61 [label="FLOAT(192, 1024)"];
QuickGelu_60 -> Mul_62;
MatMul_61 -> Mul_62;
Mul_62 -> MatMul_63;
i_11 -> MatMul_63 [label="FLOAT(1024, 192)"];
SkipSimplifiedLayerNormalization_58 -> SkipSimplifiedLayerNormalization_64;
MatMul_63 -> SkipSimplifiedLayerNormalization_64;
i_17 -> SkipSimplifiedLayerNormalization_64 [label="FLOAT(192)"];
SkipSimplifiedLayerNormalization_64 -> MatMul_65;
i_12 -> MatMul_65 [label="FLOAT(192, 32000)"];
O_66 [label="output_0\nFLOAT(batch,seq_length,32000)", fillcolor="#aaaaee"];
MatMul_65 -> O_66;
O_67 [label="present_key_values_key_0\nFLOAT(batch,1,cache_length+seq_length,96)", fillcolor="#aaaaee"];
GroupQueryAttention_56 -> O_67;
O_68 [label="present_key_values_value_0\nFLOAT(batch,1,cache_length+seq_length,96)", fillcolor="#aaaaee"];
GroupQueryAttention_56 -> O_68;
}](../../_images/graphviz-2c3d985996fc05c52e04ccc89c1fe04253bfe8a0.png)

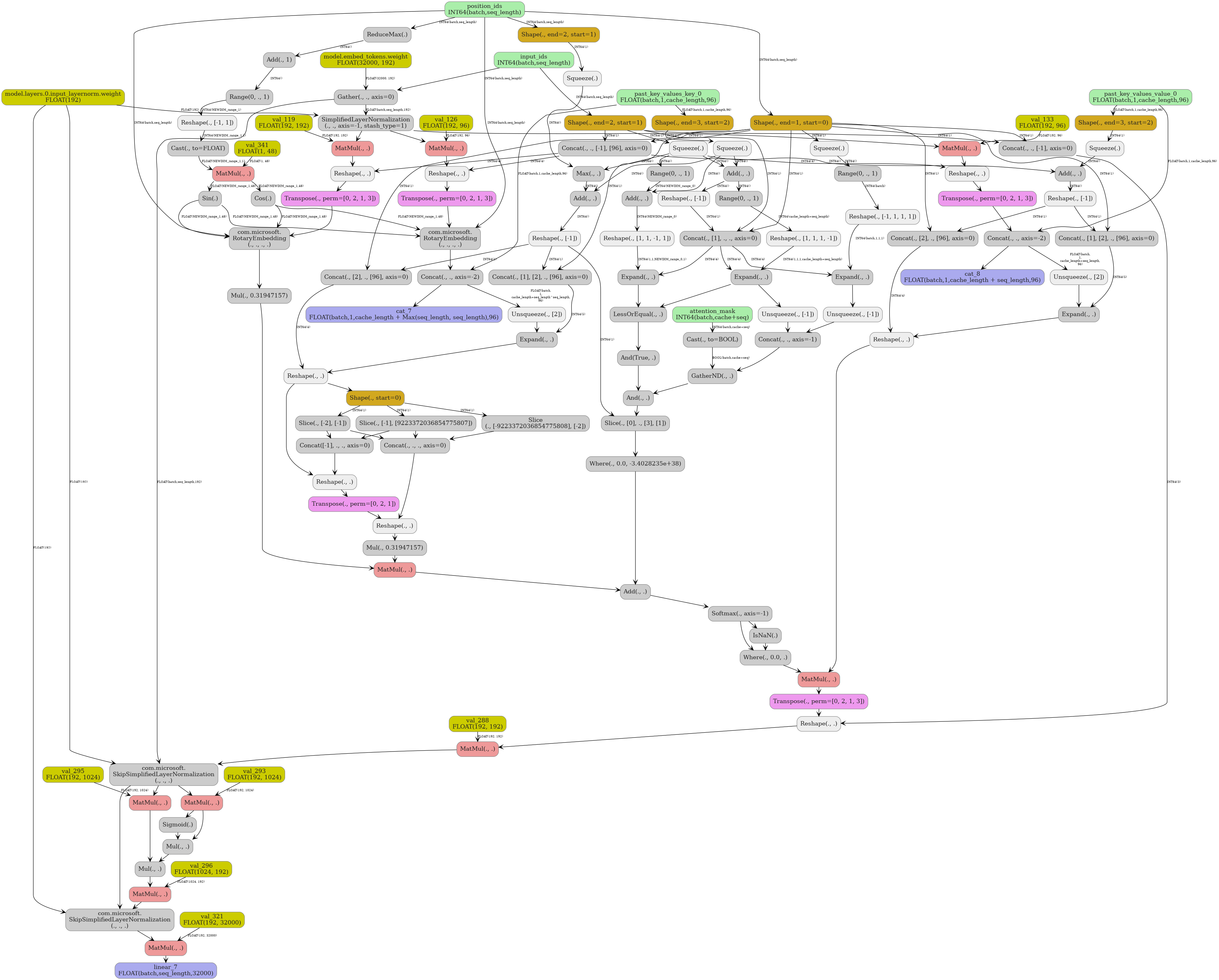

Or this one obtained with
torch.onnx.export().![digraph {
graph [rankdir=TB, splines=true, overlap=false, nodesep=0.2, ranksep=0.2, fontsize=8];
node [style="rounded,filled", color="#888888", fontcolor="#222222", shape=box];
edge [arrowhead=vee, fontsize=7, labeldistance=-5, labelangle=0];
I_0 [label="input_ids\nINT64(batch,seq_length)", fillcolor="#aaeeaa"];
I_1 [label="attention_mask\nINT64(batch,cache+seq)", fillcolor="#aaeeaa"];
I_2 [label="position_ids\nINT64(batch,seq_length)", fillcolor="#aaeeaa"];
I_3 [label="past_key_values_key_0\nFLOAT(batch,1,cache_length,96)", fillcolor="#aaeeaa"];
I_4 [label="past_key_values_value_0\nFLOAT(batch,1,cache_length,96)", fillcolor="#aaeeaa"];
i_5 [label="model.layers.0.input_layernorm.weight\nFLOAT(192)", fillcolor="#cccc00"];
i_6 [label="val_341\nFLOAT(1, 48)", fillcolor="#cccc00"];
i_7 [label="model.embed_tokens.weight\nFLOAT(32000, 192)", fillcolor="#cccc00"];
i_8 [label="val_119\nFLOAT(192, 192)", fillcolor="#cccc00"];
i_9 [label="val_126\nFLOAT(192, 96)", fillcolor="#cccc00"];
i_10 [label="val_133\nFLOAT(192, 96)", fillcolor="#cccc00"];
i_11 [label="val_288\nFLOAT(192, 192)", fillcolor="#cccc00"];
i_12 [label="val_293\nFLOAT(192, 1024)", fillcolor="#cccc00"];
i_13 [label="val_295\nFLOAT(192, 1024)", fillcolor="#cccc00"];
i_14 [label="val_296\nFLOAT(1024, 192)", fillcolor="#cccc00"];
i_15 [label="val_321\nFLOAT(192, 32000)", fillcolor="#cccc00"];
Shape_16 [label="Shape(., end=2, start=1)", fillcolor="#d2a81f"];
Squeeze_17 [label="Squeeze(.)", fillcolor="#eeeeee"];
Shape_18 [label="Shape(., end=1, start=0)", fillcolor="#d2a81f"];
Squeeze_19 [label="Squeeze(.)", fillcolor="#eeeeee"];
Shape_20 [label="Shape(., end=2, start=1)", fillcolor="#d2a81f"];
Squeeze_21 [label="Squeeze(.)", fillcolor="#eeeeee"];
Shape_22 [label="Shape(., end=3, start=2)", fillcolor="#d2a81f"];
Squeeze_23 [label="Squeeze(.)", fillcolor="#eeeeee"];
Shape_24 [label="Shape(., end=3, start=2)", fillcolor="#d2a81f"];
Squeeze_25 [label="Squeeze(.)", fillcolor="#eeeeee"];
Add_26 [label="Add(., .)", fillcolor="#cccccc"];
Max_27 [label="Max(., .)", fillcolor="#cccccc"];
Add_28 [label="Add(., .)", fillcolor="#cccccc"];
Add_29 [label="Add(., .)", fillcolor="#cccccc"];
Gather_30 [label="Gather(., ., axis=0)", fillcolor="#cccccc"];
Range_31 [label="Range(0, ., 1)", fillcolor="#cccccc"];
Add_32 [label="Add(., .)", fillcolor="#cccccc"];
Cast_33 [label="Cast(., to=BOOL)", fillcolor="#cccccc"];
Range_34 [label="Range(0, ., 1)", fillcolor="#cccccc"];
Range_35 [label="Range(0, ., 1)", fillcolor="#cccccc"];
Reshape_36 [label="Reshape(., [-1, 1, 1, 1])", fillcolor="#eeeeee"];
Reshape_37 [label="Reshape(., [1, 1, -1, 1])", fillcolor="#eeeeee"];
Reshape_38 [label="Reshape(., [-1])", fillcolor="#eeeeee"];
Concat_39 [label="Concat(., [1], ., ., axis=0)", fillcolor="#cccccc"];
Expand_40 [label="Expand(., .)", fillcolor="#cccccc"];
Expand_41 [label="Expand(., .)", fillcolor="#cccccc"];
Reshape_42 [label="Reshape(., [1, 1, 1, -1])", fillcolor="#eeeeee"];
Expand_43 [label="Expand(., .)", fillcolor="#cccccc"];
LessOrEqual_44 [label="LessOrEqual(., .)", fillcolor="#cccccc"];
And_45 [label="And(True, .)", fillcolor="#cccccc"];
Unsqueeze_46 [label="Unsqueeze(., [-1])", fillcolor="#eeeeee"];
Unsqueeze_47 [label="Unsqueeze(., [-1])", fillcolor="#eeeeee"];
Concat_48 [label="Concat(., ., axis=-1)", fillcolor="#cccccc"];
GatherND_49 [label="GatherND(., .)", fillcolor="#cccccc"];
And_50 [label="And(., .)", fillcolor="#cccccc"];
SimplifiedLayerNormalization_51 [label="SimplifiedLayerNormalization\n(., ., axis=-1, stash_type=1)", fillcolor="#cccccc"];
MatMul_52 [label="MatMul(., .)", fillcolor="#ee9999"];
Concat_53 [label="Concat(., ., [-1], [96], axis=0)", fillcolor="#cccccc"];
Reshape_54 [label="Reshape(., .)", fillcolor="#eeeeee"];
Transpose_55 [label="Transpose(., perm=[0, 2, 1, 3])", fillcolor="#ee99ee"];
MatMul_56 [label="MatMul(., .)", fillcolor="#ee9999"];
Reshape_57 [label="Reshape(., .)", fillcolor="#eeeeee"];
Transpose_58 [label="Transpose(., perm=[0, 2, 1, 3])", fillcolor="#ee99ee"];
MatMul_59 [label="MatMul(., .)", fillcolor="#ee9999"];
Reshape_60 [label="Reshape(., .)", fillcolor="#eeeeee"];
Transpose_61 [label="Transpose(., perm=[0, 2, 1, 3])", fillcolor="#ee99ee"];
ReduceMax_62 [label="ReduceMax(.)", fillcolor="#cccccc"];
Add_63 [label="Add(., 1)", fillcolor="#cccccc"];
Range_64 [label="Range(0, ., 1)", fillcolor="#cccccc"];
Reshape_65 [label="Reshape(., [-1, 1])", fillcolor="#eeeeee"];
Cast_66 [label="Cast(., to=FLOAT)", fillcolor="#cccccc"];
MatMul_67 [label="MatMul(., .)", fillcolor="#ee9999"];
Cos_68 [label="Cos(.)", fillcolor="#cccccc"];
Sin_69 [label="Sin(.)", fillcolor="#cccccc"];
RotaryEmbedding_70 [label="com.microsoft.\nRotaryEmbedding\n(., ., ., .)", fillcolor="#cccccc"];
RotaryEmbedding_71 [label="com.microsoft.\nRotaryEmbedding\n(., ., ., .)", fillcolor="#cccccc"];
Concat_72 [label="Concat(., ., axis=-2)", fillcolor="#cccccc"];
Concat_73 [label="Concat(., ., axis=-2)", fillcolor="#cccccc"];
Unsqueeze_74 [label="Unsqueeze(., [2])", fillcolor="#eeeeee"];
Reshape_75 [label="Reshape(., [-1])", fillcolor="#eeeeee"];
Concat_76 [label="Concat(., [1], [2], ., [96], axis=0)", fillcolor="#cccccc"];
Expand_77 [label="Expand(., .)", fillcolor="#cccccc"];
Concat_78 [label="Concat(., [2], ., [96], axis=0)", fillcolor="#cccccc"];
Reshape_79 [label="Reshape(., .)", fillcolor="#eeeeee"];
Unsqueeze_80 [label="Unsqueeze(., [2])", fillcolor="#eeeeee"];
Reshape_81 [label="Reshape(., [-1])", fillcolor="#eeeeee"];
Concat_82 [label="Concat(., [1], [2], ., [96], axis=0)", fillcolor="#cccccc"];
Expand_83 [label="Expand(., .)", fillcolor="#cccccc"];
Concat_84 [label="Concat(., [2], ., [96], axis=0)", fillcolor="#cccccc"];
Reshape_85 [label="Reshape(., .)", fillcolor="#eeeeee"];
Slice_86 [label="Slice(., [0], ., [3], [1])", fillcolor="#cccccc"];
Shape_87 [label="Shape(., start=0)", fillcolor="#d2a81f"];
Slice_88 [label="Slice(., [-1], [9223372036854775807])", fillcolor="#cccccc"];
Slice_89 [label="Slice(., [-2], [-1])", fillcolor="#cccccc"];
Slice_90 [label="Slice\n(., [-9223372036854775808], [-2])", fillcolor="#cccccc"];
Concat_91 [label="Concat([-1], ., ., axis=0)", fillcolor="#cccccc"];
Reshape_92 [label="Reshape(., .)", fillcolor="#eeeeee"];
Transpose_93 [label="Transpose(., perm=[0, 2, 1])", fillcolor="#ee99ee"];
Concat_94 [label="Concat(., ., ., axis=0)", fillcolor="#cccccc"];
Reshape_95 [label="Reshape(., .)", fillcolor="#eeeeee"];
Mul_96 [label="Mul(., 0.31947157)", fillcolor="#cccccc"];
Mul_97 [label="Mul(., 0.31947157)", fillcolor="#cccccc"];
Where_98 [label="Where(., 0.0, -3.4028235e+38)", fillcolor="#cccccc"];
MatMul_99 [label="MatMul(., .)", fillcolor="#ee9999"];
Add_100 [label="Add(., .)", fillcolor="#cccccc"];
Softmax_101 [label="Softmax(., axis=-1)", fillcolor="#cccccc"];
IsNaN_102 [label="IsNaN(.)", fillcolor="#cccccc"];
Where_103 [label="Where(., 0.0, .)", fillcolor="#cccccc"];
MatMul_104 [label="MatMul(., .)", fillcolor="#ee9999"];
Transpose_105 [label="Transpose(., perm=[0, 2, 1, 3])", fillcolor="#ee99ee"];
Concat_106 [label="Concat(., ., [-1], axis=0)", fillcolor="#cccccc"];
Reshape_107 [label="Reshape(., .)", fillcolor="#eeeeee"];
MatMul_108 [label="MatMul(., .)", fillcolor="#ee9999"];
SkipSimplifiedLayerNormalization_109 [label="com.microsoft.\nSkipSimplifiedLayerNormalization\n(., ., .)", fillcolor="#cccccc"];
MatMul_110 [label="MatMul(., .)", fillcolor="#ee9999"];
Sigmoid_111 [label="Sigmoid(.)", fillcolor="#cccccc"];
Mul_112 [label="Mul(., .)", fillcolor="#cccccc"];
MatMul_113 [label="MatMul(., .)", fillcolor="#ee9999"];
Mul_114 [label="Mul(., .)", fillcolor="#cccccc"];
MatMul_115 [label="MatMul(., .)", fillcolor="#ee9999"];
SkipSimplifiedLayerNormalization_116 [label="com.microsoft.\nSkipSimplifiedLayerNormalization\n(., ., .)", fillcolor="#cccccc"];
MatMul_117 [label="MatMul(., .)", fillcolor="#ee9999"];
I_0 -> Shape_16 [label="INT64(batch,seq_length)"];
Shape_16 -> Squeeze_17 [label="INT64(1)"];
I_2 -> Shape_18 [label="INT64(batch,seq_length)"];
Shape_18 -> Squeeze_19 [label="INT64(1)"];
I_2 -> Shape_20 [label="INT64(batch,seq_length)"];
Shape_20 -> Squeeze_21 [label="INT64(1)"];
I_3 -> Shape_22 [label="FLOAT(batch,1,cache_length,96)"];
Shape_22 -> Squeeze_23 [label="INT64(1)"];
I_4 -> Shape_24 [label="FLOAT(batch,1,cache_length,96)"];
Shape_24 -> Squeeze_25 [label="INT64(1)"];
Squeeze_23 -> Add_26 [label="INT64()"];
Squeeze_17 -> Add_26 [label="INT64()"];
Squeeze_17 -> Max_27 [label="INT64()"];
Squeeze_21 -> Max_27 [label="INT64()"];
Squeeze_23 -> Add_28 [label="INT64()"];
Max_27 -> Add_28 [label="INT64()"];
Squeeze_25 -> Add_29 [label="INT64()"];
Squeeze_17 -> Add_29 [label="INT64()"];
i_7 -> Gather_30 [label="FLOAT(32000, 192)"];
I_0 -> Gather_30 [label="INT64(batch,seq_length)"];
Squeeze_17 -> Range_31 [label="INT64()"];
Range_31 -> Add_32 [label="INT64(NEWDIM_range_0)"];
Squeeze_23 -> Add_32 [label="INT64()"];
I_1 -> Cast_33 [label="INT64(batch,cache+seq)"];
Add_26 -> Range_34 [label="INT64()"];
Squeeze_19 -> Range_35 [label="INT64()"];
Range_35 -> Reshape_36 [label="INT64(batch)"];
Add_32 -> Reshape_37 [label="INT64(NEWDIM_range_0)"];
Add_26 -> Reshape_38 [label="INT64()"];
Shape_18 -> Concat_39 [label="INT64(1)"];
Shape_16 -> Concat_39 [label="INT64(1)"];
Reshape_38 -> Concat_39 [label="INT64(1)"];
Reshape_36 -> Expand_40 [label="INT64(batch,1,1,1)"];
Concat_39 -> Expand_40 [label="INT64(4)"];
Reshape_37 -> Expand_41 [label="INT64(1,1,NEWDIM_range_0,1)"];
Concat_39 -> Expand_41 [label="INT64(4)"];
Range_34 -> Reshape_42 [label="INT64(cache_length+seq_length)"];
Reshape_42 -> Expand_43 [label="INT64(1,1,1,cache_length+seq_length)"];
Concat_39 -> Expand_43 [label="INT64(4)"];
Expand_43 -> LessOrEqual_44;
Expand_41 -> LessOrEqual_44;
LessOrEqual_44 -> And_45;
Expand_40 -> Unsqueeze_46;
Expand_43 -> Unsqueeze_47;
Unsqueeze_46 -> Concat_48;
Unsqueeze_47 -> Concat_48;
Cast_33 -> GatherND_49 [label="BOOL(batch,cache+seq)"];
Concat_48 -> GatherND_49;
And_45 -> And_50;
GatherND_49 -> And_50;
Gather_30 -> SimplifiedLayerNormalization_51 [label="FLOAT(batch,seq_length,192)"];
i_5 -> SimplifiedLayerNormalization_51 [label="FLOAT(192)"];
SimplifiedLayerNormalization_51 -> MatMul_52;
i_8 -> MatMul_52 [label="FLOAT(192, 192)"];
Shape_18 -> Concat_53 [label="INT64(1)"];
Shape_16 -> Concat_53 [label="INT64(1)"];
MatMul_52 -> Reshape_54;
Concat_53 -> Reshape_54 [label="INT64(4)"];
Reshape_54 -> Transpose_55;
SimplifiedLayerNormalization_51 -> MatMul_56;
i_9 -> MatMul_56 [label="FLOAT(192, 96)"];
MatMul_56 -> Reshape_57;
Concat_53 -> Reshape_57 [label="INT64(4)"];
Reshape_57 -> Transpose_58;
SimplifiedLayerNormalization_51 -> MatMul_59;
i_10 -> MatMul_59 [label="FLOAT(192, 96)"];
MatMul_59 -> Reshape_60;
Concat_53 -> Reshape_60 [label="INT64(4)"];
Reshape_60 -> Transpose_61;
I_2 -> ReduceMax_62 [label="INT64(batch,seq_length)"];
ReduceMax_62 -> Add_63 [label="INT64()"];
Add_63 -> Range_64 [label="INT64()"];
Range_64 -> Reshape_65 [label="INT64(NEWDIM_range_1)"];
Reshape_65 -> Cast_66 [label="INT64(NEWDIM_range_1,1)"];
Cast_66 -> MatMul_67 [label="FLOAT(NEWDIM_range_1,1)"];
i_6 -> MatMul_67 [label="FLOAT(1, 48)"];
MatMul_67 -> Cos_68 [label="FLOAT(NEWDIM_range_1,48)"];
MatMul_67 -> Sin_69 [label="FLOAT(NEWDIM_range_1,48)"];
Transpose_55 -> RotaryEmbedding_70;
I_2 -> RotaryEmbedding_70 [label="INT64(batch,seq_length)"];
Cos_68 -> RotaryEmbedding_70 [label="FLOAT(NEWDIM_range_1,48)"];
Sin_69 -> RotaryEmbedding_70 [label="FLOAT(NEWDIM_range_1,48)"];
Transpose_58 -> RotaryEmbedding_71;
I_2 -> RotaryEmbedding_71 [label="INT64(batch,seq_length)"];
Cos_68 -> RotaryEmbedding_71 [label="FLOAT(NEWDIM_range_1,48)"];
Sin_69 -> RotaryEmbedding_71 [label="FLOAT(NEWDIM_range_1,48)"];
I_3 -> Concat_72 [label="FLOAT(batch,1,cache_length,96)"];
RotaryEmbedding_71 -> Concat_72;
I_4 -> Concat_73 [label="FLOAT(batch,1,cache_length,96)"];
Transpose_61 -> Concat_73;
Concat_72 -> Unsqueeze_74 [label="FLOAT(batch,\n1,\ncache_length+seq_length^seq_length,\n96)"];
Add_28 -> Reshape_75 [label="INT64()"];
Shape_18 -> Concat_76 [label="INT64(1)"];
Reshape_75 -> Concat_76 [label="INT64(1)"];
Unsqueeze_74 -> Expand_77;
Concat_76 -> Expand_77 [label="INT64(5)"];
Shape_18 -> Concat_78 [label="INT64(1)"];
Reshape_75 -> Concat_78 [label="INT64(1)"];
Expand_77 -> Reshape_79;
Concat_78 -> Reshape_79 [label="INT64(4)"];
Concat_73 -> Unsqueeze_80 [label="FLOAT(batch,\n1,\ncache_length+seq_length,\n96)"];
Add_29 -> Reshape_81 [label="INT64()"];
Shape_18 -> Concat_82 [label="INT64(1)"];
Reshape_81 -> Concat_82 [label="INT64(1)"];
Unsqueeze_80 -> Expand_83;
Concat_82 -> Expand_83 [label="INT64(5)"];
Shape_18 -> Concat_84 [label="INT64(1)"];
Reshape_81 -> Concat_84 [label="INT64(1)"];
Expand_83 -> Reshape_85;
Concat_84 -> Reshape_85 [label="INT64(4)"];
And_50 -> Slice_86;
Reshape_75 -> Slice_86 [label="INT64(1)"];
Reshape_79 -> Shape_87;
Shape_87 -> Slice_88 [label="INT64(1)"];
Shape_87 -> Slice_89 [label="INT64(1)"];
Shape_87 -> Slice_90 [label="INT64(1)"];
Slice_89 -> Concat_91;
Slice_88 -> Concat_91;
Reshape_79 -> Reshape_92;
Concat_91 -> Reshape_92;
Reshape_92 -> Transpose_93;
Slice_90 -> Concat_94;
Slice_88 -> Concat_94;
Slice_89 -> Concat_94;
Transpose_93 -> Reshape_95;
Concat_94 -> Reshape_95;
RotaryEmbedding_70 -> Mul_96;
Reshape_95 -> Mul_97;
Slice_86 -> Where_98;
Mul_96 -> MatMul_99;
Mul_97 -> MatMul_99;
MatMul_99 -> Add_100;
Where_98 -> Add_100;
Add_100 -> Softmax_101;
Softmax_101 -> IsNaN_102;
IsNaN_102 -> Where_103;
Softmax_101 -> Where_103;
Where_103 -> MatMul_104;
Reshape_85 -> MatMul_104;
MatMul_104 -> Transpose_105;
Shape_18 -> Concat_106 [label="INT64(1)"];
Shape_16 -> Concat_106 [label="INT64(1)"];
Transpose_105 -> Reshape_107;
Concat_106 -> Reshape_107 [label="INT64(3)"];
Reshape_107 -> MatMul_108;
i_11 -> MatMul_108 [label="FLOAT(192, 192)"];
MatMul_108 -> SkipSimplifiedLayerNormalization_109;
Gather_30 -> SkipSimplifiedLayerNormalization_109 [label="FLOAT(batch,seq_length,192)"];
i_5 -> SkipSimplifiedLayerNormalization_109 [label="FLOAT(192)"];
SkipSimplifiedLayerNormalization_109 -> MatMul_110;
i_12 -> MatMul_110 [label="FLOAT(192, 1024)"];
MatMul_110 -> Sigmoid_111;
MatMul_110 -> Mul_112;
Sigmoid_111 -> Mul_112;
SkipSimplifiedLayerNormalization_109 -> MatMul_113;
i_13 -> MatMul_113 [label="FLOAT(192, 1024)"];
Mul_112 -> Mul_114;
MatMul_113 -> Mul_114;
Mul_114 -> MatMul_115;
i_14 -> MatMul_115 [label="FLOAT(1024, 192)"];
MatMul_115 -> SkipSimplifiedLayerNormalization_116;
SkipSimplifiedLayerNormalization_109 -> SkipSimplifiedLayerNormalization_116;
i_5 -> SkipSimplifiedLayerNormalization_116 [label="FLOAT(192)"];
SkipSimplifiedLayerNormalization_116 -> MatMul_117;
i_15 -> MatMul_117 [label="FLOAT(192, 32000)"];
O_118 [label="linear_7\nFLOAT(batch,seq_length,32000)", fillcolor="#aaaaee"];
MatMul_117 -> O_118;
O_119 [label="cat_7\nFLOAT(batch,1,cache_length + Max(seq_length, seq_length),96)", fillcolor="#aaaaee"];
Concat_72 -> O_119;
O_120 [label="cat_8\nFLOAT(batch,1,cache_length + seq_length,96)", fillcolor="#aaaaee"];
Concat_73 -> O_120;
}](../../_images/graphviz-5438c69dccc5a33f64b93f089dac6d88a803cd45.png)
Back to top
