yobx.doc#

yobx.doc.demo_mlp_model(filename: str) → ModelProto[source]#

One model obtained with the following.

import torch
from yobx.helpers.onnx_helper import pretty_onnx
from yobx.xbuilder import OptimizationOptions
from yobx.torch.interpreter import to_onnx
from yobx.translate import translate


class MLP(torch.nn.Module):
    def __init__(self):
        super().__init__()
        self.layers = torch.nn.Sequential(
            torch.nn.Linear(10, 32),
            torch.nn.ReLU(),
            torch.nn.Linear(32, 1),
        )

    def forward(self, x):
        return self.layers(x)


x = torch.rand(3, 10)
onx = to_onnx(
    MLP(), (x,), input_names=["x"], options=OptimizationOptions(patterns=None)
)
print(pretty_onnx(onx))
print(translate(onx, api="onnx-short"))

yobx.doc.draw_graph_graphviz(dot: str | ModelProto, image: str, engine: str = 'dot') → str[source]#

Draws a graph using Graphviz.

Parameters:

dot – dot graph or ModelProto
image – output image file path
engine – dot or neato

Returns:

Graphviz output

The function creates a temporary file to store the dot file.

yobx.doc.get_latest_pypi_version(package_name='yet-another-onnx-builder') → str[source]#: Returns the latest published version.

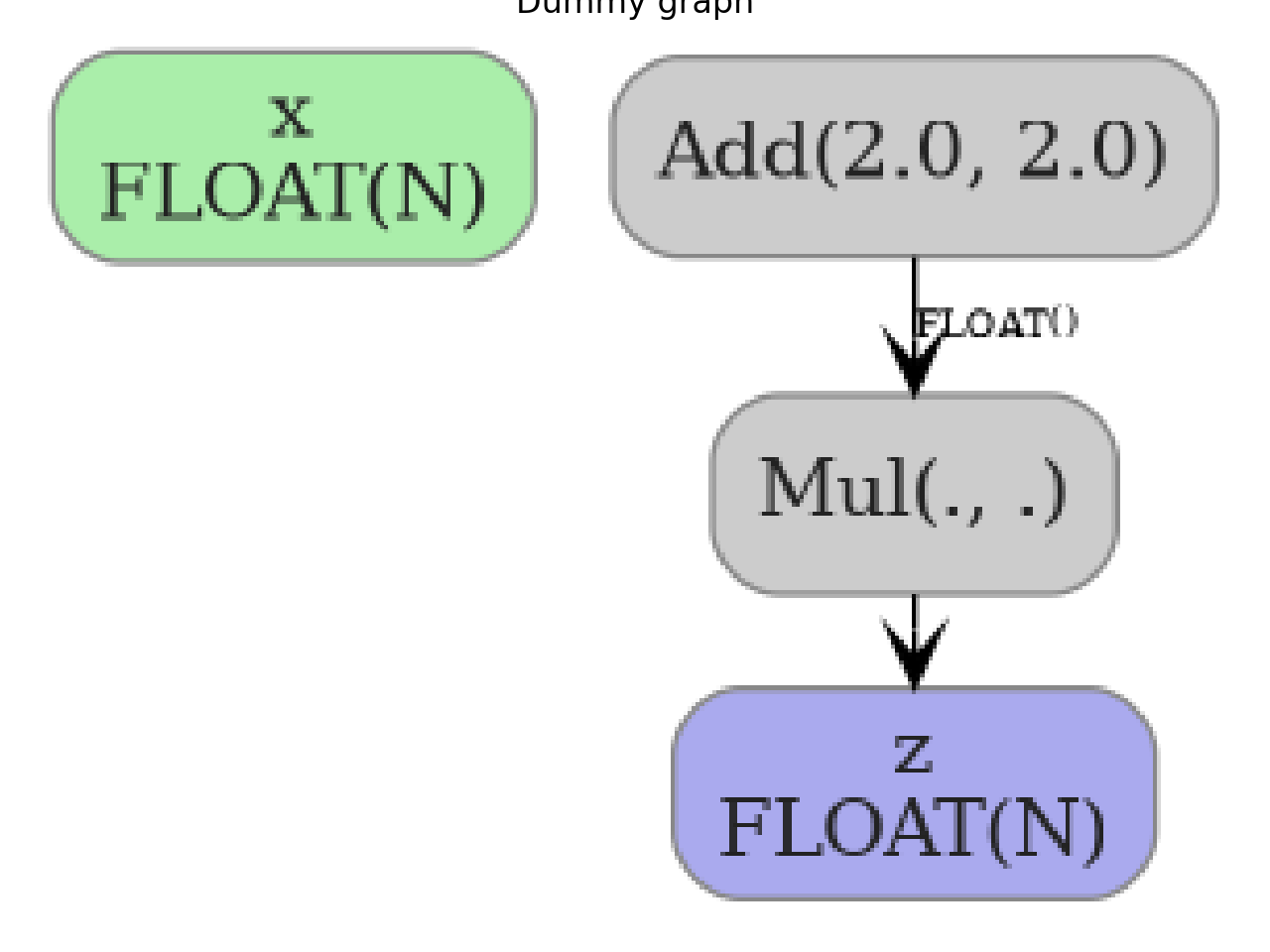

yobx.doc.plot_dot(dot: str | ModelProto, ax: matplotlib.axis.Axis | None = None, engine: str = 'dot', figsize: Tuple[int, int] | None = None) → matplotlib.axis.Axis[source]#

Draws a dot graph into a matplotlib axis.

Parameters:

dot – dot graph or ModelProto
ax – optional matplotlib axis; if None, a new figure and axis are created
engine – dot or neato
figsize – size of the figure if ax is None

Returns:

matplotlib axis containing the rendered graph image

(Source code, png, hires.png, pdf)

yobx.doc.plot_histogram(tensor: ndarray, ax: plt.axes | None = None, bins: int = 30, color: str = 'orange', alpha: float = 0.7) → matplotlib.axis.Axis[source]#: Computes the distribution for a tensor.

yobx.doc.plot_legend(text: str, text_bottom: str = '', color: str = 'green', fontsize: int = 15) → matplotlib.axes.Axes[source]#

Plots a graph with only text (for sphinx-gallery).

Parameters:

text – legend
text_bottom – text at the bottom
color – color
fontsize – font size

Returns:

axis

yobx.doc.plot_text(text: str, ax: plt.axes | None = None, title: str = '', fontsize: int = 6, line_color_map: dict | None = None, default_color: str = '#333333', figsize: Tuple[int, int] | None = None) → matplotlib.axis.Axis[source]#

Renders a block of text as a matplotlib figure, with optional per-line colour coding based on the first character of each line.

Typical use-case: rendering a unified diff so that sphinx-gallery captures the example as a figure.

Parameters:

text – the text to render (newlines split into rows)
ax – optional matplotlib axis; if None a new figure and axis are created
title – optional axis title
fontsize – font size for the rendered text
line_color_map – mapping from a line’s first character to a colour string (e.g. {"+": "green", "-": "red", "@": "blue"}). Lines whose first character is not in the map use default_color.
default_color – colour for lines not matched by line_color_map
figsize – (width, height) in inches; only used when ax is None

Returns:

the matplotlib axis

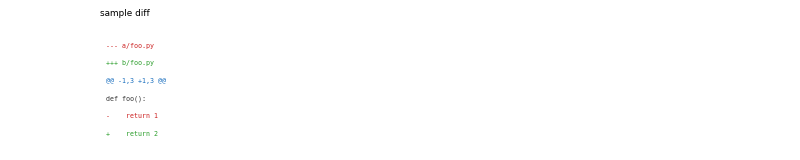

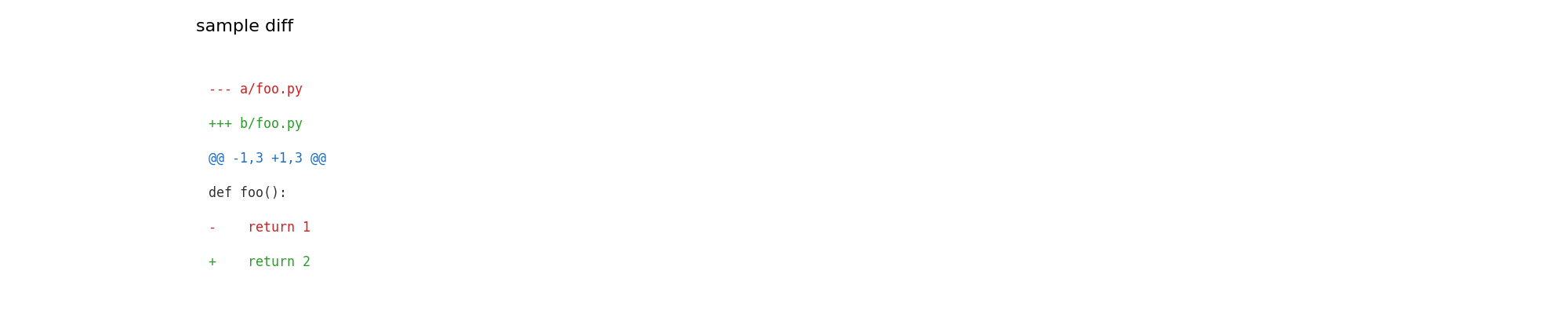

Example rendering a unified diff:

from yobx import doc
diff_text = some_patch.make_diff()
ax = doc.plot_text(
    diff_text,
    title="my patch",
    line_color_map={"+": "#2a9d2a", "-": "#cc2222", "@": "#1a6fbf"},
)

(Source code, png, hires.png, pdf)

yobx.doc.reset_torch_transformers(gallery_conf, fname)[source]#: Resets torch dynamo for sphinx-gallery.

yobx.doc.rotate_align(ax, angle=15, align='right')[source]#: Rotates x-label and align them to thr right. Returns ax.

yobx.doc.save_fig(ax, name: str, **kwargs) → matplotlib.axis.Axis[source]#: Applies tight_layout and saves the figures. Returns ax.

yobx.doc.title(ax: plt.axes, title: str) → matplotlib.axis.Axis[source]#: Adds a title to axes and returns them.

yobx.doc.update_version_package(version: str, package_name='yet-another-onnx-builder') → str[source]#: Adds dev if the major version is different from the latest published one.
