ONNX Graph Visualization with to_dot

to_dot converts an onnx.ModelProto into a DOT string that can be rendered by Graphviz.

The function:

• assigns different fill colors to well-known op-types (Shape, MatMul, Reshape, …),

• inlines small scalar constants and 1-D initializers whose length is ≤ 9 directly onto the node label so the graph stays compact,

• uses BasicShapeBuilder to annotate every edge with its inferred dtype and shape (when available),

• handles Scan / Loop / If sub-graphs by drawing dotted edges for outer-scope values consumed by the sub-graph.

The output is a plain DOT string; it can be saved to a .dot file or passed to any graphviz renderer (dot -Tsvg, dot -Tpng, …).

import numpy as np
import onnx
import onnx.helper as oh
import onnx.numpy_helper as onh
from yobx.helpers.dot_helper import to_dot

TFLOAT = onnx.TensorProto.FLOAT

Build a small model

The graph performs the following operations:

1. Add(X, Y) — element-wise sum with shape (batch, seq, d).

2. MatMul(added, W) — project the last dimension to d//2.

3. Relu(Z) — element-wise ReLU activation.

model = oh.make_model(
    oh.make_graph(
        [
            oh.make_node("Add", ["X", "Y"], ["added"]),
            oh.make_node("MatMul", ["added", "W"], ["mm"]),
            oh.make_node("Relu", ["mm"], ["Z"]),
        ],
        "add_matmul_relu",
        [
            oh.make_tensor_value_info("X", TFLOAT, ["batch", "seq", 4]),
            oh.make_tensor_value_info("Y", TFLOAT, ["batch", "seq", 4]),
        ],
        [oh.make_tensor_value_info("Z", TFLOAT, ["batch", "seq", 2])],
        [
            onh.from_array(
                np.random.randn(4, 2).astype(np.float32),
                name="W",
            )
        ],
    ),
    opset_imports=[oh.make_opsetid("", 18)],
    ir_version=10,
)

Convert to DOT

to_dot returns the DOT source as a plain string. You can write it to a file and render it with dot -Tsvg graph.dot > graph.svg.

dot_src = to_dot(model)
print(dot_src)

digraph {
  graph [rankdir=TB, splines=true, overlap=false, nodesep=0.2, ranksep=0.2, fontsize=8];
  node [style="rounded,filled", color="#888888", fontcolor="#222222", shape=box];
  edge [arrowhead=vee, fontsize=7, labeldistance=-5, labelangle=0];
  I_0 [label="X\nFLOAT(batch,seq,4)", fillcolor="#aaeeaa"];
  I_1 [label="Y\nFLOAT(batch,seq,4)", fillcolor="#aaeeaa"];
  i_2 [label="W\nFLOAT(4, 2)", fillcolor="#cccc00"];
  Add_3 [label="Add(., .)", fillcolor="#cccccc"];
  MatMul_4 [label="MatMul(., .)", fillcolor="#ee9999"];
  Relu_5 [label="Relu(.)", fillcolor="#cccccc"];
  I_0 -> Add_3 [label="FLOAT(batch,seq,4)"];
  I_1 -> Add_3 [label="FLOAT(batch,seq,4)"];
  Add_3 -> MatMul_4 [label="FLOAT(batch,seq,4)"];
  i_2 -> MatMul_4 [label="FLOAT(4, 2)"];
  MatMul_4 -> Relu_5 [label="FLOAT(batch,seq,2)"];
  O_6 [label="Z\nFLOAT(batch,seq,2)", fillcolor="#aaaaee"];
  Relu_5 -> O_6;
}

Display the graph

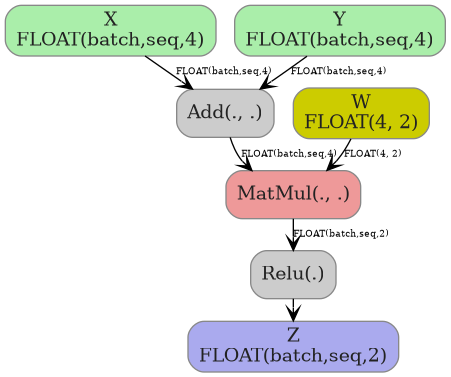

The DOT source produced above describes the following graph.
