LogisticRegression and Clustering

A logistic regression implements a convex partition of the features spaces. A clustering algorithm applied before the trainer modifies the feature space in way the partition is not necessarily convex in the initial features. Let’s see how.

A dummy datasets and not convex

import numpy
import pandas
import matplotlib.pyplot as plt
from sklearn.linear_model import LogisticRegression
from sklearn.ensemble import RandomForestClassifier
from mlinsights.mlmodel import ClassifierAfterKMeans

Xs = []
Ys = []
n = 20
for i in range(5):
    for j in range(4):
        x1 = numpy.random.rand(n) + i * 1.1
        x2 = numpy.random.rand(n) + j * 1.1
        Xs.append(numpy.vstack([x1, x2]).T)
        cl = numpy.random.randint(0, 4)
        Ys.extend([cl for i in range(n)])
X = numpy.vstack(Xs)
Y = numpy.array(Ys)
X.shape, Y.shape, set(Y)

((400, 2), (400,), {np.int64(0), np.int64(1), np.int64(2), np.int64(3)})

fig, ax = plt.subplots(1, 1, figsize=(6, 4))
for i in set(Y):
    ax.plot(
        X[i == Y, 0], X[i == Y, 1], "o", label="cl%d" % i, color=plt.cm.tab20.colors[i]
    )
ax.legend()
ax.set_title("Classification not convex")

Text(0.5, 1.0, 'Classification not convex')

One function to plot classification in 2D

def draw_border(
    clr,
    X,
    y,
    fct=None,
    incx=1,
    incy=1,
    figsize=None,
    border=True,
    clusters=None,
    ax=None,
):
    # see https://sashat.me/2017/01/11/list-of-20-simple-distinct-colors/
    # https://matplotlib.org/examples/color/colormaps_reference.html

    h = 0.02  # step size in the mesh
    # Plot the decision boundary. For that, we will assign a color to each
    # point in the mesh [x_min, x_max]x[y_min, y_max].
    x_min, x_max = X[:, 0].min() - incx, X[:, 0].max() + incx
    y_min, y_max = X[:, 1].min() - incy, X[:, 1].max() + incy
    xx, yy = numpy.meshgrid(
        numpy.arange(x_min, x_max, h), numpy.arange(y_min, y_max, h)
    )
    if fct is None:
        Z = clr.predict(numpy.c_[xx.ravel(), yy.ravel()])
    else:
        Z = fct(clr, numpy.c_[xx.ravel(), yy.ravel()])

    # Put the result into a color plot
    cmap = plt.cm.tab20
    Z = Z.reshape(xx.shape)
    if ax is None:
        _fig, ax = plt.subplots(1, 1, figsize=figsize or (4, 3))
    ax.pcolormesh(xx, yy, Z, cmap=cmap)

    # Plot also the training points
    ax.scatter(X[:, 0], X[:, 1], c=y, edgecolors="k", cmap=cmap)
    ax.set_xlabel("Sepal length")
    ax.set_ylabel("Sepal width")

    ax.set_xlim(xx.min(), xx.max())
    ax.set_ylim(yy.min(), yy.max())

    # Plot clusters
    if clusters is not None:
        mat = []
        ym = []
        for k, v in clusters.items():
            mat.append(v.cluster_centers_)
            ym.extend(k for i in range(v.cluster_centers_.shape[0]))
        cx = numpy.vstack(mat)
        ym = numpy.array(ym)
        ax.scatter(cx[:, 0], cx[:, 1], c=ym, edgecolors="y", cmap=cmap, s=300)
    return ax

Logistic Regression

clr = LogisticRegression(solver="lbfgs")
clr.fit(X, Y)

LogisticRegression()

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

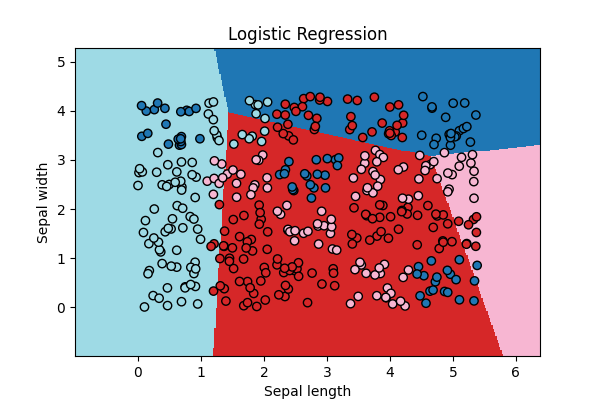

ax = draw_border(clr, X, Y, incx=1, incy=1, figsize=(6, 4), border=False)
ax.set_title("Logistic Regression")

Text(0.5, 1.0, 'Logistic Regression')

Not quite close!

Logistic Regression and k-means

clk = ClassifierAfterKMeans(e_solver="lbfgs")
clk.fit(X, Y)

~/vv/this312/lib/python3.12/site-packages/sklearn/linear_model/_logistic.py:473: ConvergenceWarning: lbfgs failed to converge after 100 iteration(s) (status=1):
STOP: TOTAL NO. OF ITERATIONS REACHED LIMIT

Increase the number of iterations to improve the convergence (max_iter=100).
You might also want to scale the data as shown in:
    https://scikit-learn.org/stable/modules/preprocessing.html
Please also refer to the documentation for alternative solver options:
    https://scikit-learn.org/stable/modules/linear_model.html#logistic-regression
  n_iter_i = _check_optimize_result(

ClassifierAfterKMeans(c_algorithm='lloyd', c_copy_x=True,
    c_init='k-means++', c_max_iter=300, c_n_clusters=2,
    c_n_init='auto', c_random_state=None, c_tol=0.0001, c_verbose=0,
    e_C=1.0, e_class_weight=None, e_dual=False, e_fit_intercept=True,
    e_intercept_scaling=1, e_l1_ratio=None, e_max_iter=100,
    e_multi_class='deprecated', e_n_jobs=None, e_penalty='l2',
    e_random_state=None, e_solver='lbfgs', e_tol=0.0001, e_verbose=0,
    e_warm_start=False)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

The centers of the first k-means:

clk.clus_[0].cluster_centers_

array([[2.73229243, 3.36426616],
       [4.84500873, 0.52154296]])

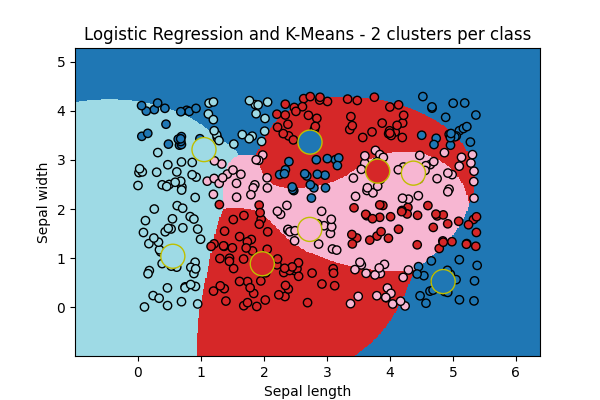

ax = draw_border(
    clk, X, Y, incx=1, incy=1, figsize=(6, 4), border=False, clusters=clk.clus_
)
ax.set_title("Logistic Regression and K-Means - 2 clusters per class")

Text(0.5, 1.0, 'Logistic Regression and K-Means - 2 clusters per class')

The big cricles are the centers of the k-means fitted for each class. It look better!

Variation

dt = []
for cl in range(1, 6):
    clk = ClassifierAfterKMeans(c_n_clusters=cl, e_solver="lbfgs", e_max_iter=700)
    clk.fit(X, Y)
    sc = clk.score(X, Y)
    dt.append(dict(score=sc, nb_clusters=cl))


pandas.DataFrame(dt)

	score	nb_clusters
0	0.5475	1
1	0.6300	2
2	0.8425	3
3	0.8925	4
4	0.9175	5

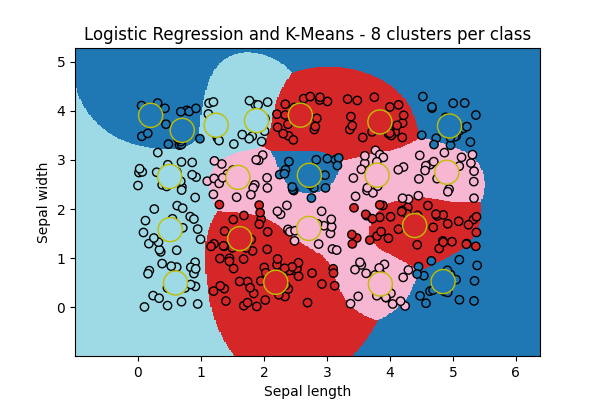

ax = draw_border(
    clk, X, Y, incx=1, incy=1, figsize=(6, 4), border=False, clusters=clk.clus_
)
ax.set_title("Logistic Regression and K-Means - 8 clusters per class")

Text(0.5, 1.0, 'Logistic Regression and K-Means - 8 clusters per class')

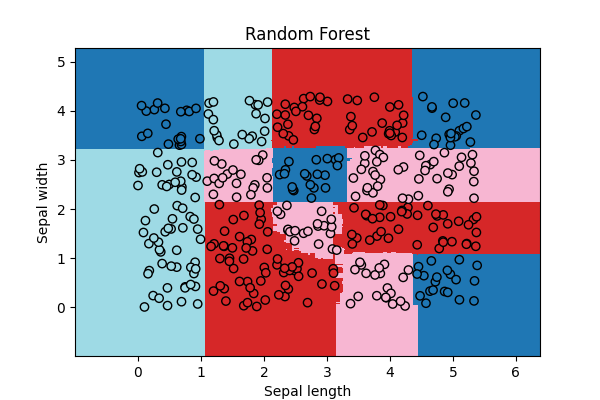

Random Forest

# The random forest works without any clustering as expected.


rf = RandomForestClassifier(n_estimators=20)
rf.fit(X, Y)

RandomForestClassifier(n_estimators=20)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

ax = draw_border(rf, X, Y, incx=1, incy=1, figsize=(6, 4), border=False)
ax.set_title("Random Forest")

Text(0.5, 1.0, 'Random Forest')
